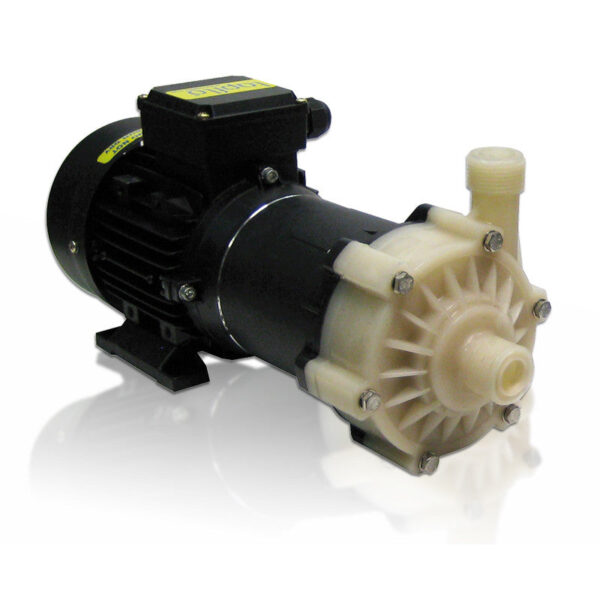

• CTM is a close coupled compact pump ideal for service in little spaces like in OEM installations. Non-metallic pumps The wetted components are non-metallic injection moulded thermoplastics enabling excellent corrosion resistance. The version in PP-GF (glass fibre reinforced polypropylene) provides great mechanical strength and allows liquid temperatures up to 70°C. The PVDF (PolyVinylidine DiFluoride) version has the superior chemical resistance and allows temperatures up to 80°C. The reliable design without shaft The impeller magnet assembly is designed with very powerful bushings where a conventional crack sensitive shaft is not needed. This results in a pump that has fewer parts and is very reliable in service. Excellent performance with magnet cage system Our magnets in NdFeB (Neodymium-iron-boron) with our patent pending magnet cage system have a superior strength also under demanding circumstances. The power from the drive is transmitted even at high temperatures and with high specific gravity liquids. Magnetic power transmission – no mechanical seal problems No leakage – safe working environment and environmental friendly Seal less pump – safe handling of hazardous fluids Hermetic system – no poisonous or dangerous vapours CTM 20-7 is the smallest in the range of CTM pumps, with motor 0.12 kW, capacity 4.5 m3/h and max head 7.5 m. CTM 25-8 has a 0.25 kW motor, has a max capacity of 7 m3/h and max head 8.5 m. CTM 25-10 has a 0.55 kW motor, capacity of 10 m3/h and max head 13.5 m.

•
