Description

• Description
• Specifications
• Downloads

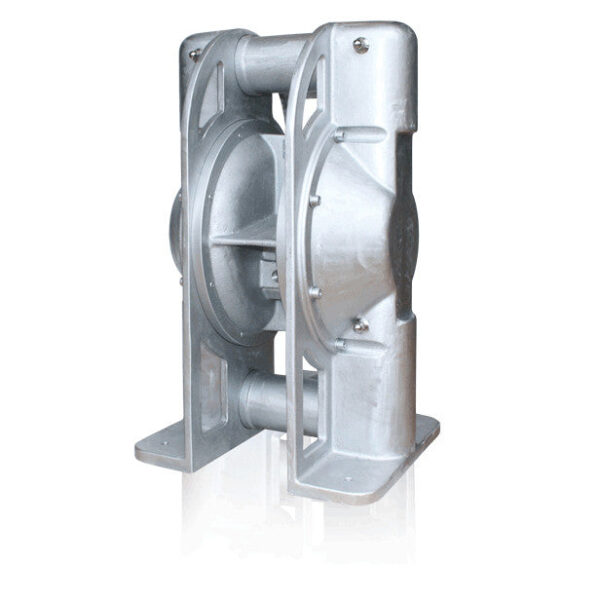

• The compact, smooth and simple design is common for this series. Materials available are aluminium, cast iron, stainless steel and PTFE coated aluminium. You will discover the ingenious simplicity when you maintain the pump. We use approximately 70% fewer parts than our competitors use to build similar sized pumps. Aluminium and cast iron pumps For transfer of pH-neutral fluids, both thin, thick, solid laden or abrasive. The aluminium and cast iron pumps are found in most fields; work shop and paint industries, purifying plants etc., to mention only a few. AISI 316 stainless steel pumps Made in lost wax cast method, ensuring great accuracy and finish. The stainless steel pumps combine great mechanical strength with good chemical features. AISI 316 is resistant to aggressive liquids like nitric acid and sodium hydroxide. The centre unit, which is not in contact with liquid, is made from corrosive resistant polypropylene (PP) as standard (other materials upon request). ATEX certified pumps All metal pumps are available in explosion proof ATEXmarked version. They are supplied with earth connection and conductive materials; conductive centre section (onAISI 316 pump), diaphragms in PTFE (conductive back) orEPDM (conductive). T820/TX820 is a big sized pump available in aluminium and stainless steel AISI 316L. It has a max capacity of 820 l/min.

• Technical info	Unit	Value
  Max Capacity	l/min (US gpm)	820 (216)
  Volume per Stroke	ml (cu in)	5125 (312.7)
  Max discharge pressure	bar (psi)	8 (116)
  Max suction lift dry	m (Ft)	4 (13)
  Max size of solids	mm (in)	13 (0.51)
  Max temp in PTFE diaphragms	Celsius (Fahrenheit)	110 (230)
  Max temp NBR or EPDM diaphragms	Celsius (Fahrenheit)	80 (176)
  Weight alu	kg (lb)	97 (213)
  Weight AISI 316L	kg (lb)	145 (319)

•
