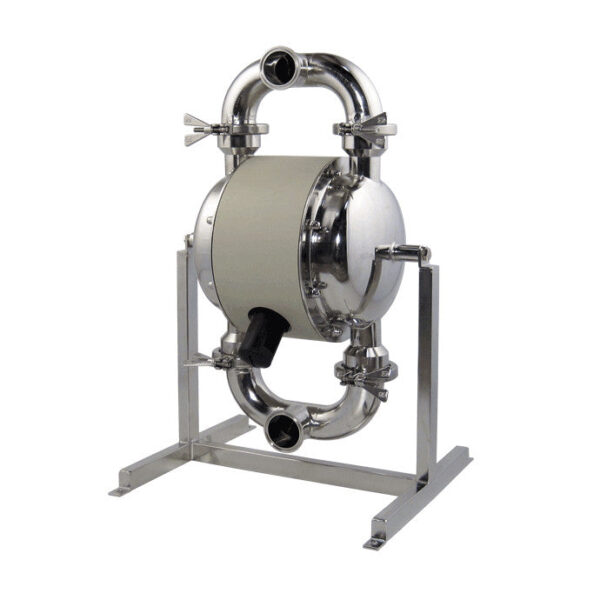

• The Tapflo sanitary series is particularly designed to meet the requirements of the food, beverage, pharmaceutical and cosmetic industries. Lubrication free air distribution system, maintenance free ball check valve system and total visual inspection of the wetted parts are some of the major features for this pump series. Made to be clean Our design allows for total visual inspection of the wetted parts. There are no hidden areas where bacteria can grow. The manifold clamps and the housing screws are simply removed for complete disassembly and cleaning. The pump is also designed for cleaning and sterilization in place – C.I.P. and S.I.P. After such operations, the pump is easily turned in its support for drainage. ATEX certified pumps All sanitary pumps are available in explosion proof ATEXmarked version. They are supplied with earth connection and conductive materials; conductive centre section and diaphragms in PTFE (conductive back) or EPDM(conductive). Easy to clean and drain –CIP/SIP cleaning/sterilizing in place No contamination of the product – inert materials used Application: Milk, cream, yoghurt, cheese Ketchup, mayonnaise, tomato products Beer, flavours, colouring Soap, tooth paste, schampoo Cream, alcohol, perfume T225 and ATEX approved TX225 is the second biggest in the range of sanitary pumps for various transfer, filling and emptying applications in food- and pharmaceutical industries. It measures 360×420×639 mm and has a max capacity of 330 l/min.

• Technical info	Unit	Value
  Max Capacity	l/min (US gpm)	330 (87)
  Volume per Stroke	ml (cu in)	700 (42.7)
  Max discharge pressure	bar (psi)	8 (116)
  Max air pressure	bar (psi)	8 (116)
  Max suction lift dry	m (Ft)	4 (13)
  Max suction lift wet	m (Ft)	8 / (26)
  Max size of solids	mm (in)	10 (0.39)
  Max temp in PE	Celsius (Fahrenheit)	110 / (230)
  Weight	kg (lb)	21 (46)

•
