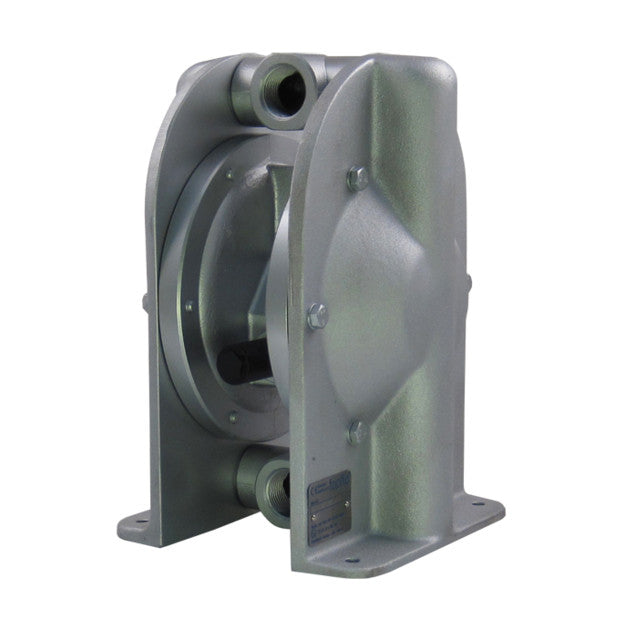

• The compact, smooth and simple design is common for this series. Materials available are aluminium, cast iron, stainless steel and PTFE coated aluminium. You will discover the ingenious simplicity when you maintain the pump. We use approximately 70% fewer parts than our competitors use to build similar sized pumps. Aluminium and cast iron pumps For transfer of pH-neutral fluids, both thin, thick, solid laden or abrasive. The aluminium and cast iron pumps are found in most fields; work shop and paint industries, purifying plants etc., to mention only a few. AISI 316 stainless steel pumps Made in lost wax cast method, ensuring great accuracy and finish. The stainless steel pumps combine great mechanical strength with good chemical features. AISI 316 is resistant to aggressive liquids like nitric acid and sodium hydroxide. The centre unit, which is not in contact with liquid, is made from corrosive resistant polypropylene (PP) as standard (other materials upon request). ATEX certified pumps All metal pumps are available in explosion proof ATEXmarked version. They are supplied with earth connection and conductive materials; conductive centre section (onAISI 316 pump), diaphragms in PTFE (conductive back) orEPDM (conductive). T120 and ATEX approved TX120 is a mid-sized pump available in aluminium cast iron and stainless steel AISI316L. With the compact dimensions 200×195×302 it has an impressive max capacity of 158 l/min.

• Technical info	Unit	Value
  Max Capacity	l/min (US gpm)	158 (41)
  Volume per Stroke	ml (cu in)	420 (25.6)
  Max discharge pressure	bar (psi)	8 (116)
  Max suction lift dry	m (Ft)	4 (13)
  Max size of solids	mm (in)	6 (0.23)
  Max temp in PE	Celsius (Fahrenheit)	–
  Max temp in PTFE	Celsius (Fahrenheit)	–
  Standard pump T in alu	kg (lb)	8 (18)
  Standard pump T in cast iron	kg (lb)	17 (37)

•
