• Description

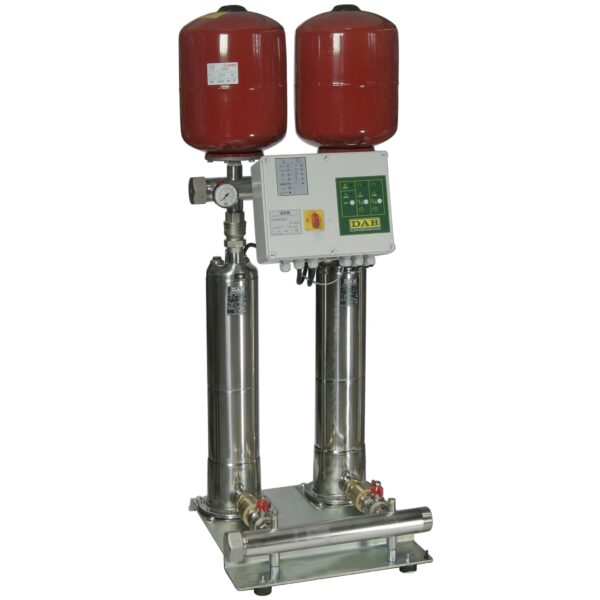

  The PULSAR DRY pumps are used in lifting and
  pressurisation systems for water from primary collection
  tanks or wells and are suitable for providing pressurized
  water in domestic systems, small-scale farming and
  sprinkler systems for gardens and vegetable gardens. The
  pump is extremely silent and this feature makes it suitable
  for use with pressurisation systems in unventilated rooms
  or in areas prone to flooding. Single-piece multi-stage
  bore-hole pump or of surface with hydraulic assembly
  positioned under the motor which is cooled by the pumped
  liquid. Impellers, diffusers, filter and oil sump in abrasionproof
  thermoplastic. Pump liner, stator sleeve, upper head
  with sleeve and sealing ring in AISI 304 steel. Upper and
  lower bearing supports in dezincification-proof pressed
  brass. Rotor shaft extension in AISI 304. Elastomers in
  NBR. Stainless steel hardware. Double mechanical
  seal separated by an oil chamber, in ceramic/carbon
  on the motor side and carburundum/carburundum on
  the pump side. The sealing system ensures the motor
  remains airtight and the mechanical seal holds even after
  brief periods of no-water operation.
  Continuous service asynchronous submersible motor.
  Stator incorporated in an AISI 304 stainless steel airtight
  casing with a cover housing the cables and capacitor.
  Rotor mounted on oversized ball bearings to ensure
  silent running and long life. Incorporated thermal current
  protection and permanently connected capacitor in the
  single-phase version. As regards three-phase protection,
  a motor overload cut out should be fitted, in accordance
  with current standards. Built to IEC 2-3 and IEC 61-69
  (EN 60335-2-41).

• Features
  Operating range: from 0.9 to 7.2 m3/h with a head of
  up to 86 m.
  Max. quantity of sand in water: 50 gr/m3.
  Protection level of motor: IP 68.
  Protection class of motor: F.
  Liquid temperature range: da 0°C a +40°C.
  Maximum depth of immersion: 20 metres.
  Standard cables: 15 m of HO7 RN F cable complete with
  SCHUKO EEC 7-VII-UNEL 47166-68 plug for the singlephase
  version. The single-phase versions can be supplied
  with or without floats for automatic operation.
