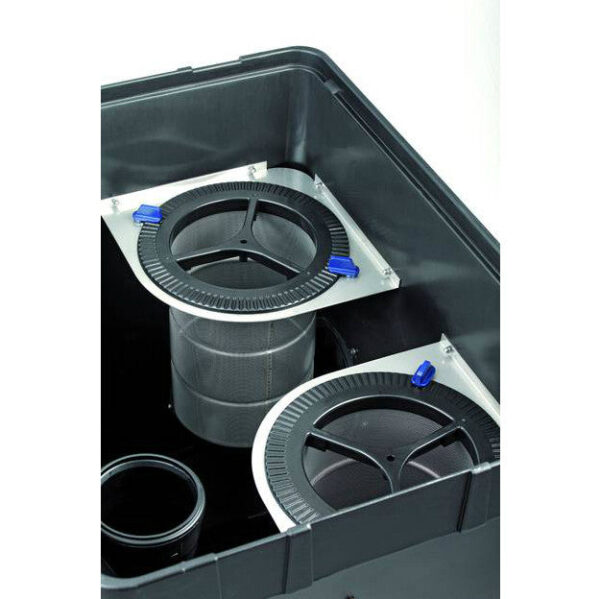

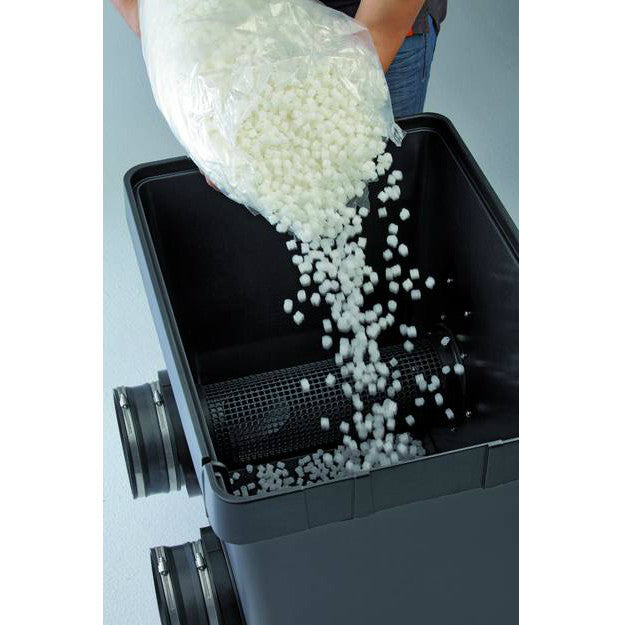

• Individual Module – highly effective Product characteristics at a glance • Easy installation of Aquamax Gravity Eco filter pumps or Bitron Gravity UVC • Included in the filter area are pre installed stainless steel baskets for individual addition of extra filter material from A (active carbon) to Z (Zeolite) • Flexible installation possibilities with minimum loss of pressure thanks to DN100 pipe work on the Bitron Gravity • Convenient placement of Individual baskets with up to 8 liters filling volume Moving Bed Module – Hel-X ensures fluid media movement Product characteristics at a glance • Expert know how and original Hel -X biomedia provides for reliable nutrient reduction in the filter • Extremely large protected settlement surface for microorganisms – 40% more than Kaldnes K1: Hel-X 704m²/1000l | Kaldnes K1 500m²/1000l • Innovative Bypass technology enables optimal movement of the Hel-X media even with high flow rates • Efficient removal of toxins like ammonium, ammonia and nitrites • Pre installed diffuser for optimal oxygen enrichment and turbulence. For use with AquaOxy air pumps.

• Individual Module: Dimensions in mm (L x W x H) 830 x 600 x 820 Net weight in kh 50,00 Guarantee 2 + 1 years Individual filter granulate 2 x 5 litres Number of sieve elements (unit) 2 Material GRP thermoset/stainless steel Number of inlets (unit) 2 Connections, inlets DN 150 Number of outlets (unit) 2 Connections, outlets (unit) 2”, DN 100 Connections, sludge discharge DN 70 Max. flow rate (l/h) 25000 Min. flow rate (l/h) 10000 Connection to Bitron Gravity, AquaMax Gravity Eco Installation height over water level in cm 13 Type of use Pumping system, gravity-fed Other Pollutant discharge incl. slide valve Moving Bed Module: Dimensions in mm (L x W x H) 830 x 600 x 820 Net weight in kg 50,00 Guarantee 2 + 1 years Biological filter surface in m² 43,0 Biological filter surface protected in m² 35,5 Material GRP thermoset Number of inlets (unit) 2 Connections, inlet DN 150 Number of outlets (unit) 2 Connections, outlet DN 150 Connections, sludge discharge DN 70 Max. flow rate (l/h) 25000 Min. flow rate 10000 Connection to AquaOxy CWS 2000 – 4800 Installation height over water level in cm 13 Type of use Pumping system, gravity-fed Other Ventilation pre-installed, pollutant discharge incl. slide valve
• ProfiClear Premium Moving Bed Module Operating Instructions
