• Drum Fliter Module – Intelligent Filtration Product characteristics at a glance • Most effective filter performance with flow rate of up to 25 m³ per hour for crystal clear water • Unique, completely automatic self cleaning offers minimal maintenance • Flexible use, ideal for gravity or pump fed systems • Long life quality product, developed to a high standard. German production! • Extensive VDEP tested, certified safe function • Installation height above water only 13 cm • A micro control system oversees and operates the main functions and is easy to use Pump Filter Module Product characteristics • Filter efficiency up to 60 ?m und 33 m³/h flow rate in a gravitational system (pumped 25 m³/h) • Automatic self cleaning • A watertight microcontroller system monitors and controls the main function • VDE testing certifies reliable and safe functions • Gravity fed system only: Full flexibility for the connection with up to 4 x DN 110 inlets • Safety level switch in the pumped system prevents jamming due to debris particles • Massive stainless steel elements • Individually removable sieve elements (no tools required) and free wheeling function • Incomparably quiet • High quality pressure pump is integrated for flushing the drum

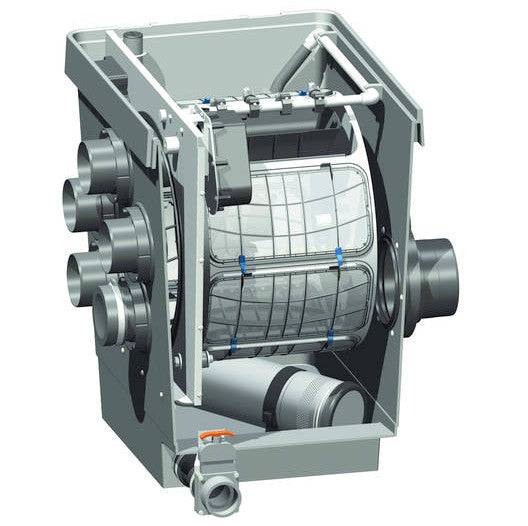

• ProfiClear Premium Drum filter pumping system: Width in mm 830 Length in mm 600 Height in mm 820 Rated voltage 230 V / 50 Hz Power consumption in W 5 Power consumption cleaning in W 1090 Cable length in m 2,00 + 5,00 Net weight in kg 50,00 Guarantee 2 + 1 years Temperature indicator Yes Coarse debris extraction in µM 60 Number of nozzles / cleaning flow rate 4 x 2, 5 l/min Waste pump Ebara 6 bar Automatic purging sensor, time interval, manual Drum diameter in mm 516 Basket width in mm 370 Number of sieve elements (unit) 8 Filter intake surface in cm2 4200 Material GRP thermoset/stainless steel Number of inlets (unit) 3 Connections, inlet DN 100 Number of outlets (unit) 2 Connections, outlet DN 150 Connections, sludge discharge DN 70, DN 100 Pump capacity, max. in l/h 25000 Installation height over water level in cm 13 Possible water-level difference in cm 5 Type of use Pumping system Other Pollutant discharge incl. slide valve ProfiClear Premium drum filter gravity: Dimensions (L x W x H) mm 830 x 600 x 820 Rated voltage 230 V / 50 Hz Power consumption in W 5 Power consumption cleaning in W 1090 Cable length in m 2,00 + 5,00 Net weight in kg 70,00 Guarantee 2 + 1 years Temperature display Digital Coarse debris extraction in µM 60 Number of nozzles / cleaning flow rate 4 x 2, 5 l/min Waste pump 6 bar Automatic purging sensor, time interval, manual Number of sieve elements 8 Filter intake surface in cm2 4200 Material GRP thermoset/stainless steel Number of inlets (unit) 4 Connections, inlet DN 100 Number of outlets (unit) 2 Connections, outlet DN 150 Connections, sludge discharge DN 75, DN 110 Connection to Bitron gravity Mix. Flow rate (/h) 10000 Max. flow rate (l/h) 33000 Installation height over water level in cm 13 Type of use Gravity fed system Other Pollutant discharge incl. slide valve
• ProfiClear Premium Operating Instructions
