• Product characteristics • Powerful underwater LED spotlight for pleasant warm white light accents • Bright illumination, thanks to a powerful 110 lumen rating • High energy efficiency at power consumption of 3 watt • Half peak angle of 30° for broad illumination of plants and other highlights • Adjustable head for flexible alignment of the beam angle • Suitable for permanent underwater use, thanks to protection class IP68 (connection IP 44) • Suitable for use underwater and above the water • Fast and easy installation thanks to Plug’n’Play

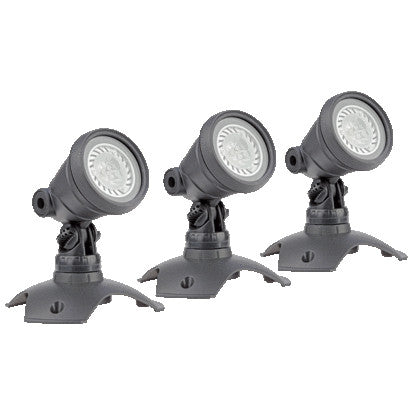

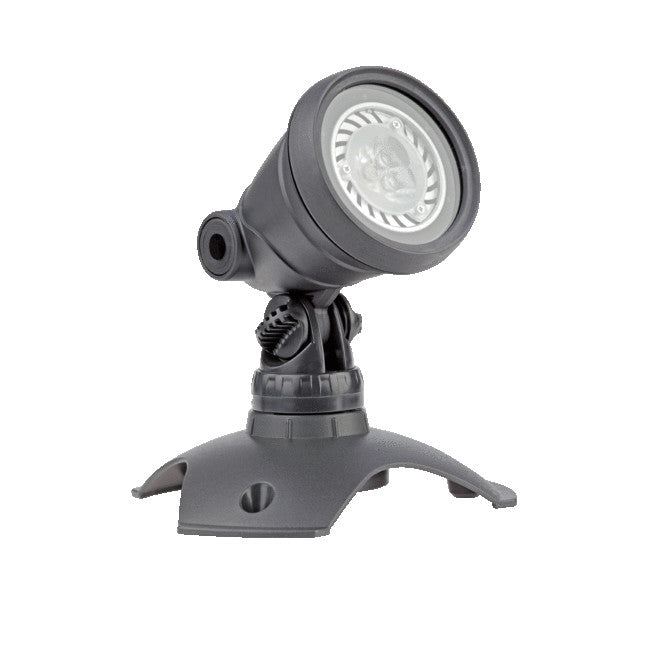

• Set 1: Dimensions (Ø x H) (mm) 75 x 140 Rated voltage 12 V Power consumption light fixture 3 W Energy efficiency category light fixture A Power consumption set 4 W Protection class IP 68, IP 44 (transformer) Cable length 12 V device (m) 2,00 (power unit) + 5,00 Net weight (kg) 1,4 Guarantee 2 Years Illuminant type LED Number of individual LEDs (EA) 3 Light flux (lm) 110 Light colour Warm-white Half peak angle 30 Degrees Set 3: Dimensions (Ø x H) (mm) 75 x 140 Rated voltage 12 V Power consumption light fixture 3 W Energy efficiency category light fixture A Power consumption set 10 W Protection class IP 68, IP 44 (transformer) Cable length 12 V device (m) 2,00 (power unit) + 5,00 Net weight (kg) 3,2 Guarantee 2 Years Illuminant type LED Number of individual LEDs (EA) 3 Light flux (lm) 110 Light colour Warm-white Half peak angle 30 Degrees
• LunAqua 3 Led Operating Instructions
