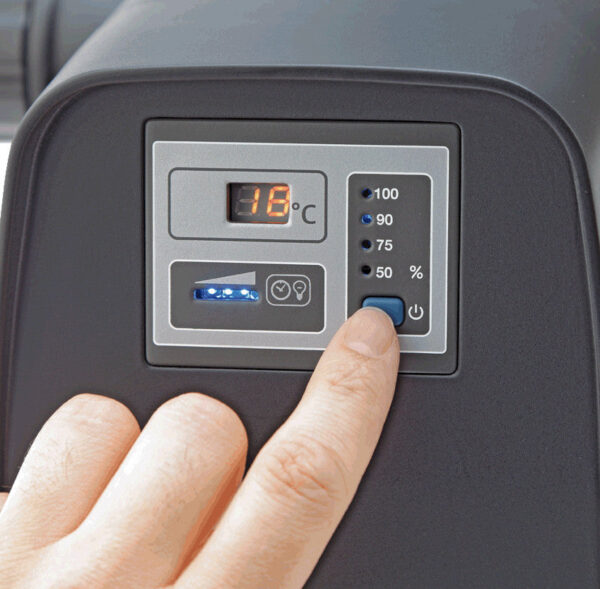

• Product characteristics • Concentrated UVC power clears ponds up to 120 m³/180 m³/240 m³ • High intensity treatment of suspended algae, turbidity and harmful bacteria in the pond water • Now with unique UVC bulb with 50 % longer service life (12,000 h) – developed in cooperation with Philips • High volume UVC housing with a new design and organic shape for a particularly long water dwell time • Eco control system enables maximum energy efficiency with savings potential of up to 50 %*1 • More protection for the climate. Eco mode saves up to 525 kg CO²/year*2 • Intelligent bypass regulation automatically adapts the flow rate to the pump capacity in the filter system • If desired, continuous irradiation or device switch off are possible at the touch of a button • Clever UVC function monitor, display for bulb change and water temperature • UVC radiation is at its best at all times thanks to patented, autonomous bulb cleaning • Protection class IP68 enables direct set up at the edge of the pond • Simple connection to other 2″ filter systems • 100 %, VDE-certified safety; does not cause eye injuries • Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear

• Bitron Eco 120 W Dimensions (L x W x H) (mm) 725 x 227 x 248 Rated voltage 220 – 240 V / 50/60 Hz Power consumption 120W Power cable length (m) 5.00 Net weight (kg) 7.90 Guarantee (+ request guarantee) 3 years UVC power 120 W Temperature display Digital UVC opening hours meter 12000 Bypass control Automatic Number of inlets (EA) 1 Connections, inlet (mm) 38/50 Connections, inlet 1 ½”, 2” Number of outlets (EA) 1 Connections, outlet (mm) 38/50 Connections, outlet 1 ½”, 2” Max. flow rate (l/h) 50000 Max. operating pressure (bar) 1.00 Suitable for ponds up to max. (m³) 120.0 Suitable for ponds 60.0 Connection to ProfiClear, BioTec 30, BioTec ScreenmMatic 36 Other LED function check Bitron Eco 180 W Dimensions (L x W x H) (mm) 725 x 227 x 248 Rated voltage 220 – 240 V / 50/60 Hz Power consumption 180W Power cable length (m) 5.00 Net weight (kg) 7.90 Guarantee (+ request guarantee) 3 years UVC power 180 W Temperature display Digital UVC opening hours meter 12000 Bypass control Automatic Number of inlets (EA) 1 Connections, inlet (mm) 38/50 Connections, inlet 1 ½”, 2” Number of outlets (EA) 1 Connections, outlet (mm) 38/50 Connections, outlet 1 ½”, 2” Max. flow rate (l/h) 50000 Max. operating pressure (bar) 1.00 Suitable for ponds up to max. (m³) 180.0 Suitable for ponds 90.0 Connection to ProfiClear, BioTec 30, BioTec ScreenmMatic 36 Other LED function check Bitron Eco 240 W Dimensions (L x W x H) (mm) 725 x 227 x 248 Rated voltage 220 – 240 V / 50/60 Hz Power consumption 240W Power cable length (m) 5.00 Net weight (kg) 8.10 Guarantee (+ request guarantee) 3 years UVC power 240 W Temperature display Digital UVC opening hours meter 12000 Bypass control Automatic Number of inlets (EA) 1 Connections, inlet (mm) 38/50 Connections, inlet 1 ½”, 2” Number of outlets (EA) 1 Connections, outlet (mm) 38/50 Connections, outlet 1 ½”, 2” Max. flow rate (l/h) 50000 Max. operating pressure (bar) 1.00 Suitable for ponds up to max. (m³) 240.0 Suitable for ponds 120.0 Connection to ProfiClear, BioTec 30, BioTec ScreenmMatic 36 Other LED function check
• Bitron Eco Operating Instructions
