• Product characteristics • Combination of mechanical-biological cleaning and effective UVC technology • Incl. OASE Clear Water Guarantee • Oxygen enrichment through special water channelling • Cleaning handles for convenient maintenance • Including displays for pollutant level and water temperature • Sludge drain for easy removal of coarse debris • Easy to conceal; the filter can be recessed into the ground to ? of its height • Filters and pumps are optimally matched

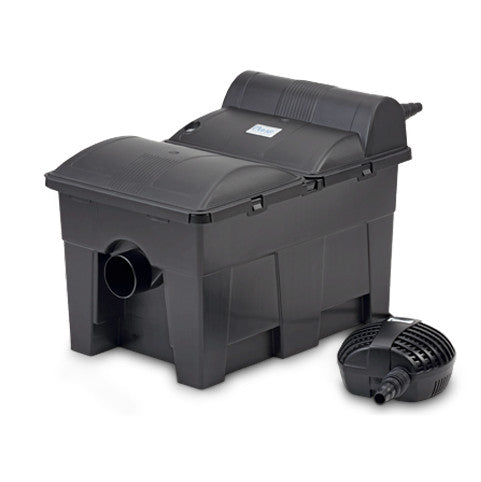

• BioSmart 7000:- Dimensions (L x W x H) (mm) 280 x 380 x 410 UVC/power consumption in watt 9 Accompanying filter/watercourse pump *FP 2500 *FP pumps are only available in the set! Power consumption in watt (pump) 40 Max. flow rate (l/h – pump) 2500 Max. head height (m – pump) 2.2 Max. filter flow rate l/h 2750 Inlet stepped hose adapter in inch ¾” – 1 ½” Outlet in mm DN 50 Number of blue filter foams 2 Number of red filter foams 1 Number of green filter foams (EA) – Suitable for ponds with fish stock 3500 1 Suitable for ponds up to max. 7000 1 Guarantee 2 years BioSmart 14000:- Dimensions (L x W x H) (mm) 560 x 380 x 410 UVC/power consumption in watt 11 Accompanying filter/watercourse pump *FP 3500 *FP pumps are only available in the set! Power consumption in watt (pump) 70 Max. flow rate (l/h – pump) 3400 Max. head height (m – pump) 2.7 Max. filter flow rate l/h 5500 Inlet stepped hose adapter in inch ¾” – 1 ½” Outlet in mm DN 70 Number of blue filter foams 3 Number of red filter foams 3 Number of green filter foams (EA) – Suitable for ponds with fish stock 7000 1 Suitable for ponds up to max. 14000 1 Guarantee 2 years BioSmart 18000:- Dimensions (L x W x H) (mm) 559 x 559 x 408 Rated voltage 220 – 240 V / 50/60 Hz Power consumption UVC 18W Power consumption pump 60W Power cable length UVC (m) 5.00 Power cable length pump (m) 10.00 Net weight (kg) 13.30 Guarantee 2 years UVC power 18W Number of blue filter foams (EA) 2 Number of red filter foams (EA) 1 Number of green filter foams (EA) 1 Temperature display Yes Connections inlet (mm) 19/25/32/38 Connections inlet ¾”, 1”, 1 ¼”, 1 ½” Connections outlet DN 75 Connections sludge discharge DN 50 Suitable for ponds up to max. (m³) 18.0 BioSmart 24000:- Dimensions (L x W x H) (mm) 920 x 555 x 405 Rated voltage 220 – 240 V / 50/60 Hz Power consumption UVC 24W Power consumption pump 60W Power cable length UVC (m) 5.00 Power cable length pump (m) 10.00 Net weight (kg) 18.20 Guarantee 2 years UVC power 24W Number of blue filter foams (EA) 4 Number of red filter foams (EA) 4 Number of green filter foams (EA) 1 Temperature display Yes Connections inlet (mm) 19/25/32/38 Connections inlet ¾”, 1”, 1 ¼”, 1 ½” Connections outlet DN 75 Connections sludge discharge DN 50 Suitable for ponds up to max. (m³) 24.0 BioSmart 36000:- Dimensions (L x W x H) (mm) 920 x 600 x 405 Rated voltage 220 – 240 V / 50/60 Hz Power consumption UVC 36W Power consumption pump 100W Power cable length UVC (m) 5.00 Power cable length pump (m) 10.00 Net weight (kg) 20.00 Guarantee 2 years UVC power 36W Number of blue filter foams (EA) 4 Number of red filter foams (EA) 4 Number of green filter foams (EA) 1 Temperature display Yes Connections inlet (mm) 19/25/32/38 Connections inlet ¾”, 1”, 1 ¼”, 1 ½” Connections outlet DN 75 Connections sludge discharge DN 50 Suitable for ponds up to max. (m³) 36.0
• BioSmart Set 18000-36000 Operating Instructions
