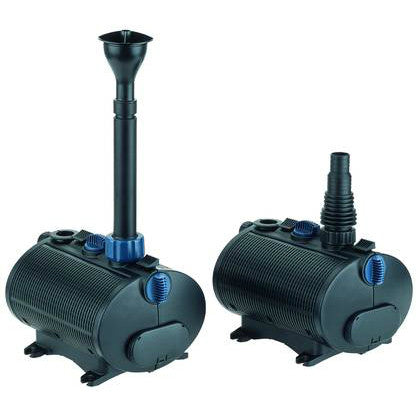

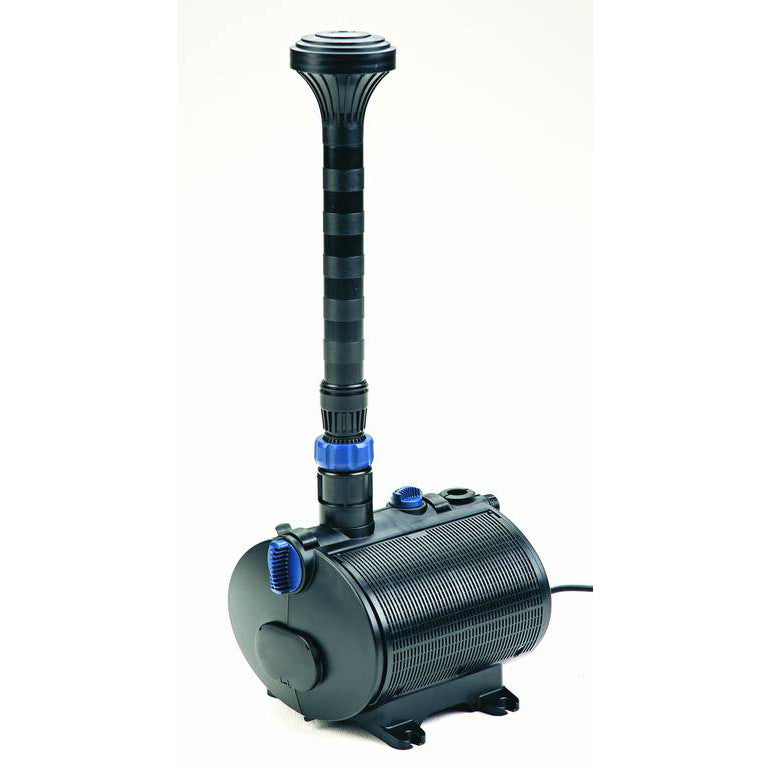

• • High-performance Aquarius-type solar fountain pumps • Special, robust plugs for connecting to the SOLARCAPACITY storage and regulating unit, or to one of the new OASE Solar modules • Supplied with 5 m power cable and 3 different nozzle patterns

• 700: Power consumption (watts) 8 Dimensions in mm (LxWxH) 217 x 130 x 134 Number of nozzles supplied 3 Strainer surface (cm2) 825 Delivery side (inch) ½” Hose connection ½” Weight (kg) 1.5 Guarantee 3+2=5 years Direct current 12V Litres per hour max. (l/h) 700 Maximum head height (m) 2 1500: Power consumption (watts) 17 Dimensions in mm (LxWxH) 217 x 130 x 134 Number of nozzles supplied 3 Strainer surface (cm2) 825 Delivery side (inch) ½” Hose connection ½” Weight (kg) 2 Guarantee 3+2=5 years Direct current 12V Litres per hour max. (l/h) 1,500 Maximum head height (m) 3
• Aquarius Solar 700 and 1500 Operating Instructions
