• Description

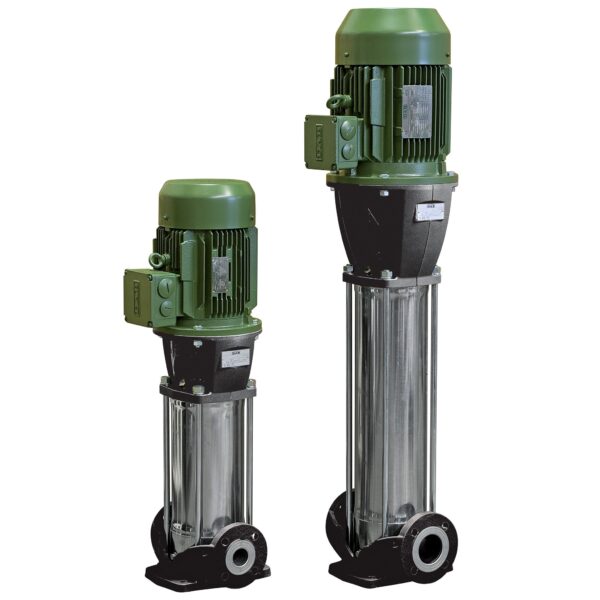

  Vertical multistage centrifugal pump suitable in medium
  and large water supplies.
  It is ideal for pressure sets, boiler feed and hot water
  circulation, conveying condensate and cooling water,
  fire fighting and washing systems, supplying drinking
  water and feeding pressurised tanks, sprinkler and
  spraying irrigation systems.
  All the parts in contact with liquid are stainless.
  AISI 304 stainless steel internal pump body and AISI
  304 stainless steel ULTEM, impellers, pump shaft and
  base liner.
  Cast iron external pump body treated with ataphoresis,
  cast iron support.
  “Cartridge” silicon/silicon mechanical seal exempt from
  maintenance.
  Connected to the motor with a rigid coupling.

• Features
  Motor protection: IP 55.
  Insulation class: F.
  Standard voltage:
  three-phases 230-400 V / 50 Hz up to 4 kW included.
  three-phases 400 V ? / 50 Hz on the top of 4 kW.
  Operating range: from 4 to 29 m3/h with head up to
  249 meters.
  Pumped liquid: without solid or abrasive substances,
  not viscous, not aggressive, not crystallised and
  chemically neutral, close to water characteristics.
  Liquid temperature range: from -20°C to +90°C.
  Maximum ambient temperature: +40°C.
  Maximum working pressure: 25 bar (2500 kPa).
  Installation: fixed, vertical mounting.
  Special version on demand: different voltage supply
  and/or feeding frequence 60 hz version EFF 1 motor,
  and anti-deflagrating version.
