• Description

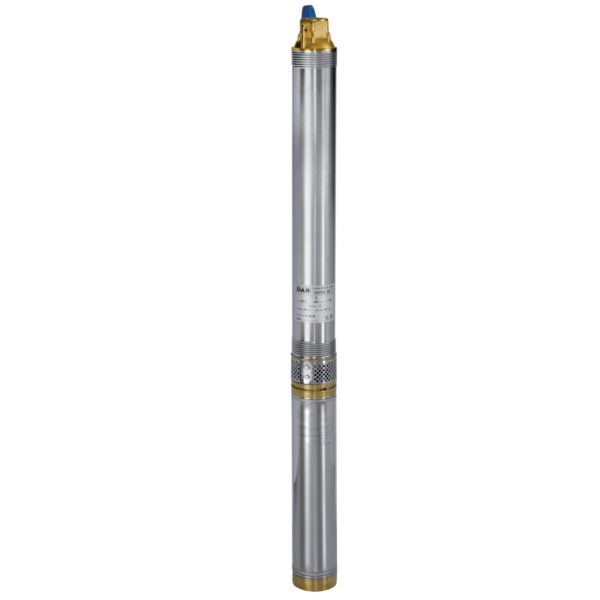

  Centrifugal type. Directly coupled pump and motor
  with rigid coupling. Impellers and thrust rings in Noryl
  and diffusers in self-lubricating polyacetyl. Pump liner,
  shaft and coupling, strainer and cable sheath in stainless
  steel. Base support and head in brass with check valve
  incorporated in head. Submersible asynchronous twopole
  motor made entirely of AISI 304 stainless steel with
  brass bearings. Squirrel cage rotor in copper mounted
  on Kingsbury thrust block. Cooling of the thrust bearing
  assembly and the bushings is provided by water, thereby
  eliminating the risk of oil contamination. Canned-type
  stator in an airtight casing made of AISI 304L stainless
  steel. The automatic reset thermal protection device is
  integral with the motor.

• Features
  Clean, free of solid or abrasive contaminants, non-viscous,
  chemically neutral, close to the properties of water.
  da 0° C a +35° C.
  40 g/m3.
  IP 68.
  F.
  20/h.
  MICRA 50 – 1 m.
  MICRA 75 – 1,2 m.
  MICRA 100 – 1,4 m.
  Ready-to-install kit available including single phase
  electric pump with 15m cable and control panel and
  double capacitor control panel.
