Description
- Description

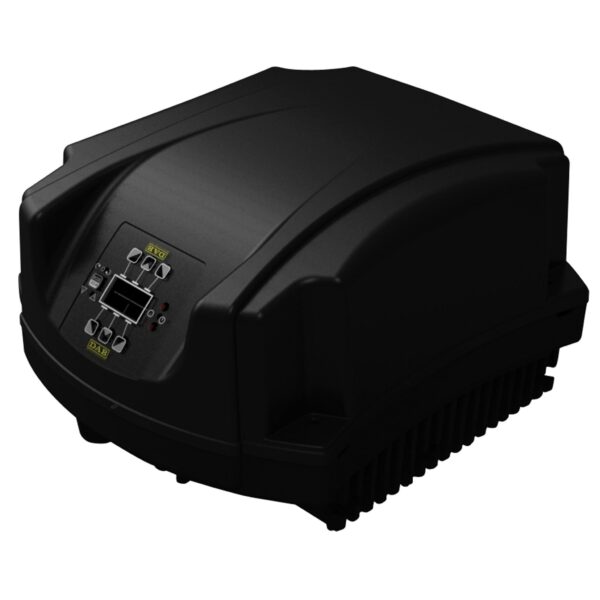

The new MCE/C inverters are the latest technological
challenge in the DAB inverters universe. They constitute
the new generation of inverters for use with circulator
pumps and stand out for ease of use, power, and
simplicity of installation and management.
MCE/C inverters are designed for use with circulator
pumps to enable simple control of differential pressure,
thereby adapting pump performance to match effective
system requirements.
The solution of mounting on the motor base greatly
simplifi es installation of the pump with MCE/C in
minimal times.
Ease of programming is guaranteed by the use of an
interface similar to DAB Dialogue and a graphic display.
MCE/C inverters feature dual microprocessor
architecture to guarantee maximum efficiency and
reliability. Sturdy and reliable construction is combined
with modern and innovative styling to complete the
product also in terms of aesthetics.
MCE/C inverters protect the pump thanks to integrated
safety devices. They are also able to prolong the useful
lifetime of the pump thanks to the elimination of water
hammer and rotation of the pump at the minimum rpm
necessary to meet the requirements of the user.
Last but not least, these inverters save power by
keeping pump consumption to the minimum levels
strictly necessary to meet user requirements.
Equipped with communication module for the
creation of twin pumpsets. -
Features
For three-phase pumps up to 3HP – 2,2kW
(MCE/C 11 – MCE/C 15 – MCE/C 22).
For three-phase pumps up to 7,5 HP – 5.5 kW
(MCE/C 30 – MCE/C 55).
For three-phase pumps up to 20HP – 15kW
( MCE/C 110 – MCE/C 150).
OLED graphic display.
Input power supply 1 x 230V 50-60Hz
(MCE/C 11 – MCE/C 15 – MCE/C 22).
Input power supply 3 x 400V 50-60Hz
(MCE/C 30 – MCE/C 55 MCE/C 110 – MCE/C 150).
Pump voltage 3 x 230V
(MCE/C 11 – MCE/C 15 – MCE/C 22).
Pump voltage 3 x 400V
(MCE/C 30 – MCE/C 55 MCE/C 110 – MCE/C 150).
Electric pump nominal frequency 50-200 Hz.
Control range in accordance with the
sensor utilised, with standard range 1-24 Bar.
Protections against voltage surges.
Adjustable overload protection.
Extended connectivity.
Protection rating: IP55.
Short circuit between output phases.
Overtemperature protection
