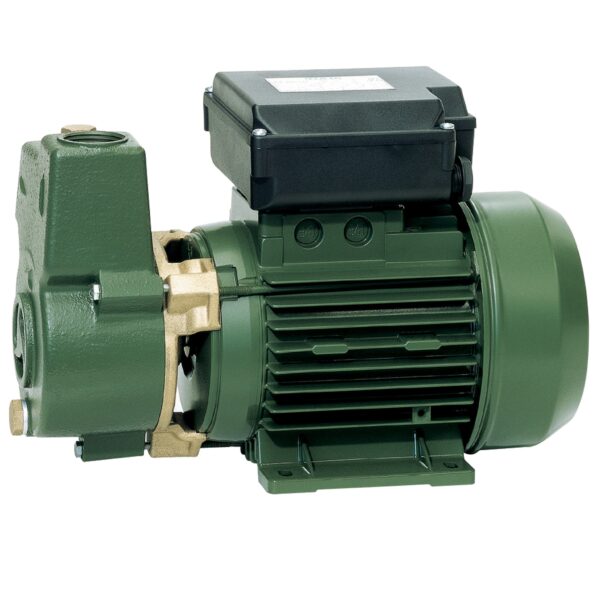

  Self-priming peripheral pump with star impeller, with a
  great suction capacity. Cast iron body with brass ring.
  Motor support and impeller in brass to avoid the risk of
  blocking. Driving shaft in stainless steel. Carbon/ceramic
  mechanical seal.
  Asynchronous, closed motor, cooled by external ventilation.
  Built-in thermal and current overload protection and a
  capacitor permanently on in the single-phase version.
  For the protection of the three-phase motor it is advisable
  to use a suitable overload protection complying with the
  regulations in force.

• Features
  Operating range: from 8 to 45 l/min. with head up to
  53 metres.
  Liquid temperature range: from -10°C to +80°C
  from 0°C to +35°C for domestic use.
  Pumped liquid characteristics: clean, free from solids
  or abrasive substances, not viscous, not aggressive, not
  crystallised and chemically neutral.
  Maximum ambient temperature: +40°C.
  Maximum working pressure: 10 bar (1000 kPa).
  Protection level: IP 44 (IP 55 terminal board protection).
  Insulation class: F.
