• Description

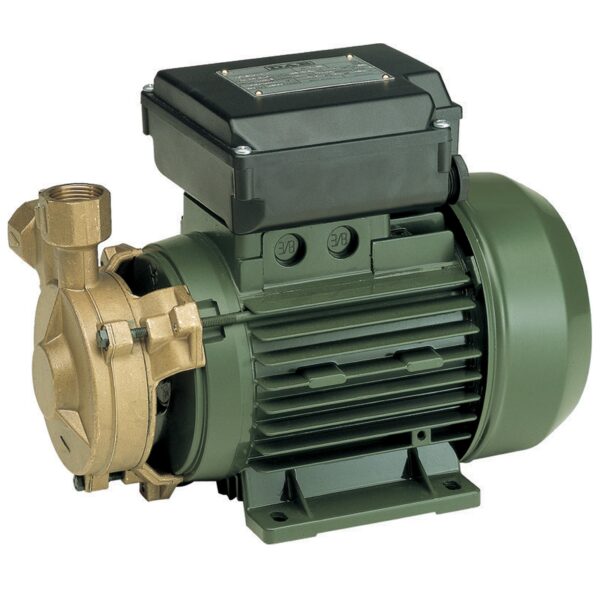

  Pump body, motor support and impeller in brass.
  Carbon/ceramic mechanical seal. Stainless steel motor
  shaft. Asynchronous, closed motor cooled by external
  ventilation.
  Rotor mounted on oversized greased sealed-for-life ball
  bearings to ensure silent running and long life.
  Motor overload cut out equipped as standard in the singlephase
  version. Overload protection to be provided by the
  user for the three-phase version. Permanently connected
  capacitor for the single-phase version.
  Construction to CEI 2-3 and CEI 61-69 (EN 60335-2-41)
• Features
  Protection rating: IP 44
  Insulation class: F
  Standard voltage: 1x230V 50Hz single-phase
  3×230-400V 50Hz three-phase
  Operating range: from 1 to 35 l/min with head up to
  107 meters.
  Pumped liquid: clean, free from solids or abrasive
  substances, not aggressive.
  Liquid temperature range:
  – from 0°C to +35°C for domestic use (EN 60335-2-41)
  – from -10°C to +80°C for other uses.
  Maximum ambient temperature: +40°C
  Maximum working pressure: 10 bar (1000 kPa).
  Installation: fixed in horizontal position.
