• Description

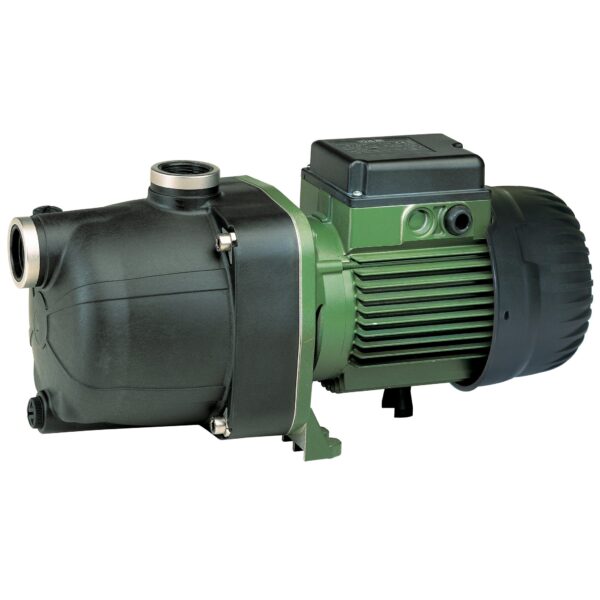

  Self-priming centrifugal (Jetcom) or multistage (Eurocom)
  pump with excellent suction capacity even when there are
  air bubbles. Suitable for use with water containing small
  sand impurities. Especially suitable for water supplies
  in domestic systems: handling of aggressive water in
  general with chlorine contents (swimming pools). Pump
  body in technopolymer.
  Support and seal-carrier in AISI 316 STAINLESS
  STEEL.
  Carbon/ceramic mechanical seal.
  Rotor shaft in AISI 316 STAINLESS STEEL.
  Impellers, diffuser, Venturi tube, and sand guard in
  technopolymer. Clearance rings in stainless steel.
  Continuous duty asynchronous motor.
  Built-in motor overload cut out and a capacitor
  permanently on in the single-phase version.
  Protection for the three-phase version is the responsibility
  of the user.

• Features
  Motor protection level: IP 44
  Terminals protection level: IP 55
  Insulation class: F
  Standard voltage:
  220/240V – 50 Hz single-phase
  230/400V – 50 Hz three-phase
  Operating range: from 10 to 80 l/min with head of up to
  58 m depending on the model
  Liquid quality requirements: clean, free of solid or
  abrasive contaminants, swimming pool water (containing
  chlorine).
  Liquid temperature range:
  from 0°C to +35°C for domestic use (EN 60335-2-41)
  from 0°C to +40°C for other uses.
  Maximum ambient temperature: +40°C
  Maximum operating pressure: 6 bar (600 kPa)
  Installation: fixed or portable in horizontal position.
