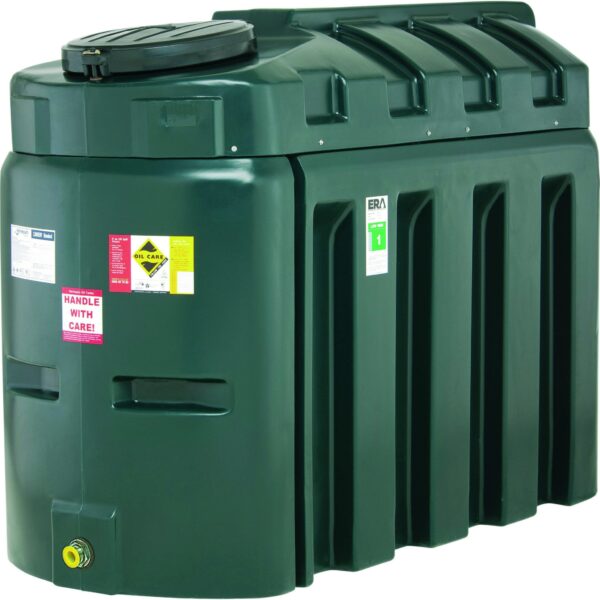

All iTanks are bunded. This means that each tank consists of a ‘tank within a tank’ design.

Harlequin ITE bunded oil tanks come equipped with a range of standard fittings, including an ultrasonic contents gauge and bottom outlet fitting kit – the complete solution for a fully compliant installation.

If you are looking for a no-nonsense, no frills option check out the1225HQi designed for customers who do not require the additional tank technology that comes with the iTank range.

Standard Features:

• Moulded from durable medium density polyethylene material
• Integrally bunded
• Bottom outlet with 1″ BSP(F) thread (ITE only)
• 16″ lockable access lid
• 2″ BSP(M) fill point
• 4″ lockable inspection cap
• Ultrasonic contents gauge with remote display
• Bottom outlet fitting kit (reducer, isolation valve, filter, 10mm oil line fitting) – ITE only
• Atkinson Tanktop top offtake fitting (ITT only)
• Inner tank vent
• Moulded-in handles for ease of fitting

ALL Harlequin HQi/ITE/ITT heating oil tanks are bunded as standard and come with a 10 YEAR GUARANTEE on the Tank.

Product Dimensions

• Length: 2,110mm
• Width: 840mm
• Height: 1525mm
• Weight: 150KG
• Brimful Capacity: 1,248 litres
• Nominal Capacity: 1,186 litres
• Cement Base Length: 2,710mm
• Cement Base Width: 1,450mm
