All iTanks are bunded. This means that each tank consists of a ‘tank within a tank’ design.

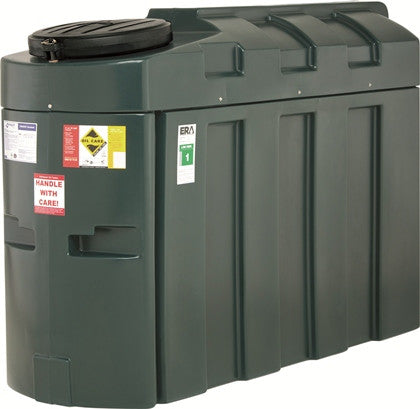

Harlequin ITE bunded oil tanks come equipped with a range of standard fittings, including an ultrasonic contents gauge and bottom outlet fitting kit – the complete solution for a fully compliant installation.

If you are looking for a no-nonsense, no frills option check out the1000HQi designed for customers who do not require the additional tank technology that comes with the iTank range.

Standard Features:

• Moulded from durable medium density polyethylene material
• Integrally bunded
• Bottom outlet with 1″ BSP(F) thread – ITE only
• 16″ lockable access lid
• 2″ BSP(M) fill point
• 4″ lockable inspection cap
• Ultrasonic contents gauge with remote display
• Bottom outlet fitting kit (reducer, isolation valve, filter, 10mm oil line fitting) – ITE only
• Atkinson Tanktop top offtake fitting – ITT only
• Inner tank vent
• Moulded-in handles for ease of fitting

ALL Harlequin HQi/ITE/ITT heating oil tanks are bunded as standard and come with a 10 YEAR GUARANTEE on the Tank.

 Product Dimensions

• Length: 2,150mm
• Width: 690mm
• Height: 1,420mm
• Weight: 132KG
• Nominal Capacity: 1003 litres
• Brimful Capacity: 1055 litres

Cement Base Length: 2,750mm

Cement Base Width> 1,310mm
