Description

• Description
• Specifications
• Downloads

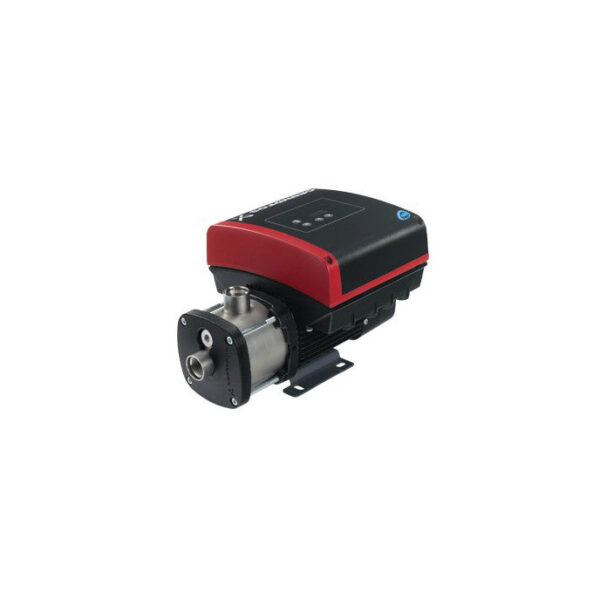

• This horizontal multistage pump CM (Centrifugal Modular) has been created with compactness and modularity as two of its central features, making numerous configurations a possibility. The pump is basically composed of a series of interchangeable modules, all of which have been designed to work together seamlessly, no matter the application. The pumps are of the close-coupled type. The difference between the CM and the CME pump ranges is the motor. CM pumps are fitted with mains-operated motors where as the motor for CME pumps has an integrated frequency converter. Both CM and CME pumps have mechanical shaft seal. The CM/CME pumps are available in cast iron or stainless steel (AISI 304/DIN 1.4301 stainless steel for water and non-corrosive liquids and AISI 316/DIN 1.4401 stainless steel offers a high degree of corrosion protection against aggressive liquids). The CM/CME pump is primarily used as a build-in pump in OEM solutions and domestic boosters. It is compact, noiseless, reliable and flexible, and this make it an optimal solution for installation and interaction with other components in a large system. It can also be used as a system pump, connected in complete system solutions, or even as a stand-alone pump.

• ? Compact design ? Modular construction/customised solutions ? Worldwide usage ? High reliability ? Service-friendly ? Wide performance range ? Low noise level ? High-performance hydraulics ? Electro-coated cast-iron parts ? Customised solutions ? Grundfos motor ? Compatible with Grundfos GO remote control
•
