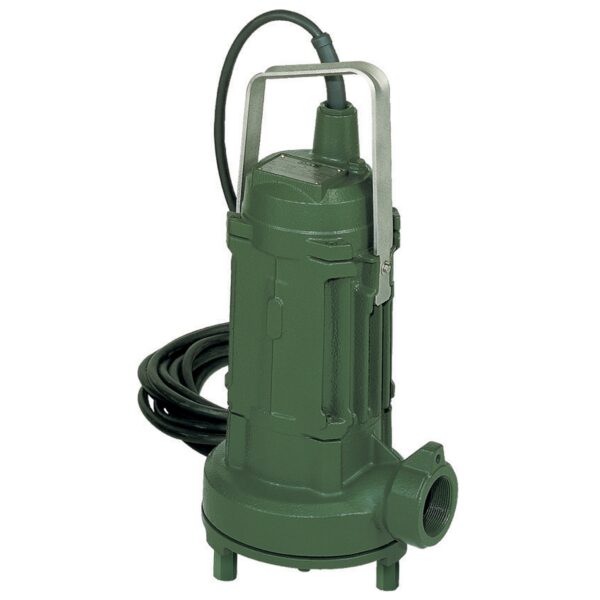

  Submersible pump with cast iron pump body, motor
  casing and adjustment ring impeller. Grinder device in
  micro casting steel. Stainless steel shaft, handle, filter,
  bolts and screws. Silicon/carbide mechanical seal,
  inspectionable oil chamber.
  Continuous duty submersible induction motor, in a
  watertight casing. Rotor mounted on oversized greased
  sealed-for-life ball bearings. Thermal protection in the
  windings, to be connected to the control panel. with 10
  metres of neoprene rubber power cable.
  In order to operate, the pumps must be equipped
  with a control and protection system, supplied
  separately and not connected to the electropumps
  (see accessories).

• Features
  Liquid temperature range: from 0°C to +55°C.
  Operating range: from 2 to 9 m3/h with head up to 24,5
  mt for thesingle-phase version and 26,5 mt for the threephase
  version.
  Liquid quality requirements: dirty waste water,
  untreated sewage containing solids and/or long fibres,
  always non aggressive.
  Liquid temperature range: from 0°C to +55°C.
  Maximum ambient temperature for pump
  operation with the motor emerging: +40°C.
  Maximum immersion depth: 10 mt.
  Installation: fixed or portable in a vertical position.
