Description
-
Description

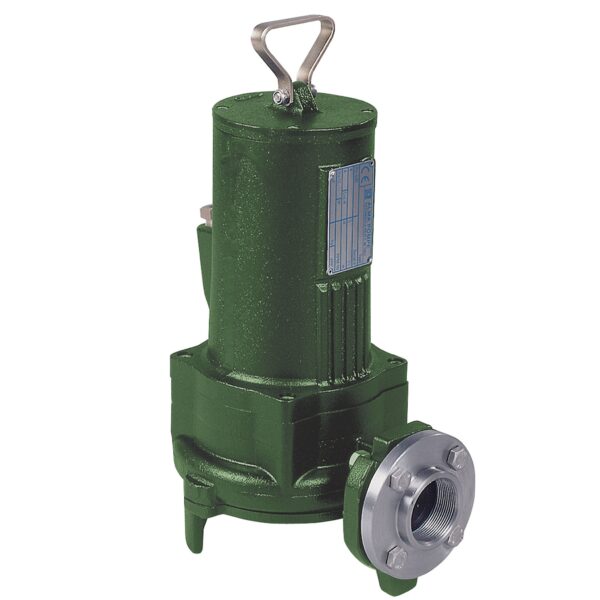

Submersible centrifugal pumpfitted with cutting system
suitable for pumping domestic wastewater with usual
solid addictions. Solids which cannot be transportated
are rejected outside of the pump by the cutting rotor
as the cutting system is located upstream from the
pump hydraulics. Cover, motor body, hydraulic section
and impeller in cast iron ENGJL 200, grinding device in
AISI440C. Carbon/alumina double mechanical seal.
Dry type asynchronous sealed motor. Rotor mounted
on ball bearings to ensure silent running and long
life. In the single-phase version capacitor current
protection in external control box, supplied with the
pump.Features
Motor protection level: IP 68.
Insulation class: F.
Continuous duty with pump completely immersed. The
single-phase version can be equipped with float switch
for automatic starting and stopping of the pump.
Supplied as standard with 10 mt H07RN-F power
cable.
Operating range: from 0 to 22 m3/h with head up to
25 mt.
Liquid quality requirements: Not aggressive
sewage, drain water.
Liquid temperature range: From 0° to + 40°.
Maximum immersion depth: 10 mt.
Installation: portable, in vertical position.
Free passage: 5mm.
