Description
-
Description

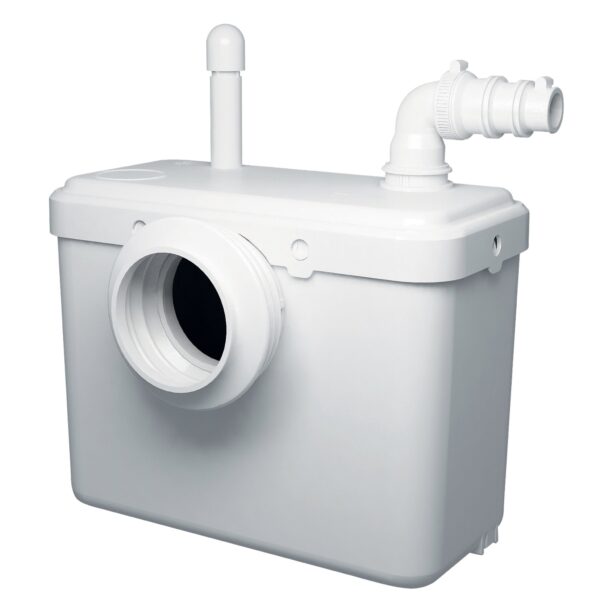

Small lifting stations for automatic collecting and pumping
sewage. Its use is necessary whenever the waste water
can not be expelled by gravity. The lifting station is mounted
directly behind the WC and is therefore unaffected by the
type of waste piping and unions.
This lifting station can be used wherever an additional
toilet is required during new building work, renovations
and structural modifications. Depending on the model, a
shower, bidet and washbasin can beconnected together
with the WC.
The inflow water from the sanitary ware connected to the
system automatically turns on the Fekalift 100/200 when
there is an increase in the water level of approximately 8
cm and is automatically turned off when thelevel drops
by approximately 3 cm. The solids and excrement that
arrive from the toilet are chopped andforced into the
general waste pipe through the pressure pipe. The Fekalift
100/200 can be connected to any European standards
WC with horizontal waste. At least 6 litres of water must
be available each time flushing is performed. Water saving
push button flushes are advised.
The appealing design, technical innovation and
manufacturing quality make FEKALIFT an indispensable
item for the fitting of a supplementary toilet, above or
below the backwater level (based on the DIN 1986
standard).
The Fekalift 100 and Fekalift 200 systems are suitable
for water temperatures up to 60°C and are resistant to
slightly acidic substances. Avoid the discharge of water
containing greasy or oily substances into the Fekalift 100
and Fekalift 200.
The motor, powerful yet noiseless, the pump and the
grinding device are made of stainless steel.
The integrated pump purifying system makes the station
practically maintenance free.
Easy to install, it is also designed for connection of a
shower base with 12 cm drain height.
The forced side duct with built-in no-return valve allows
the cover to be removed without having to remove the
delivery pipe. -
Features
Power input: 1×230 V~ 50 Hz.
Insulation class: B.
Speed of rotation: 3000 1/min.
Operation: automatic.
Approval: VDE – GS.
Built to: DIN 19762.
Capacity: 11 lt (Fekalift 100A).
16 lt (Fekalift 200A).
11 lt (Fekalift 300A).
Protection level: IP44
