Description
-
Description

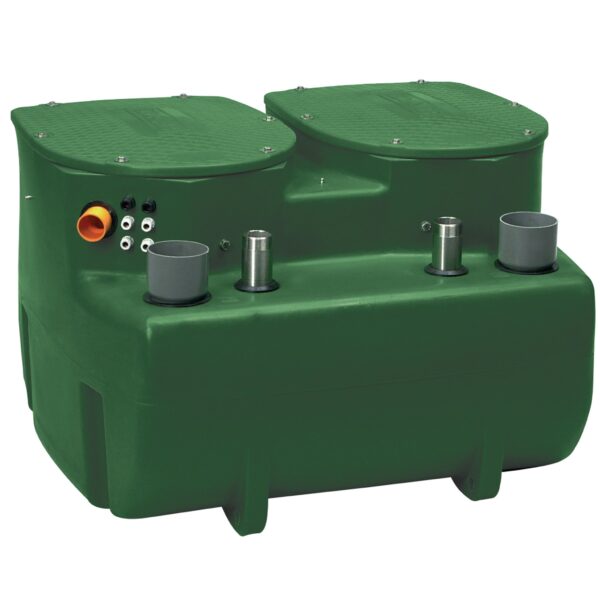

Automatic collection and lifting stations, used for
collecting and pumping civil and industrial waste water
in sewers. Comprises a high density 550 litre polythene
tank with 2 removable covers complete with a watertight
and gastight seal.
Fekafos series is suitable only for the use of one or two
not automatic single/triphase pumps from the following:
FEKA 600 M-NA/T, FEKA VS/VX 550-750-1000-1200
GRINDER 1000-1200-1600 T, GRINDER 1400 M-1800
T FEKA 1400 M-1800 T, FEKA 2015 – 2030.2TNA) to
be ordered separately.
Complete with: 3 bulb floats mounted on a stainless
steel support, cable holder for connecting the float and
pump cables to the electrical panel (to order separately
according to performance range table), DN50 and
DN110 suction manifolds and 2” delivery manifolds,
connector for DN50 vent tube, 2 lifting devices (DSD2)
for making pump maintenance easier. An alarm float can
be used on request. -
Features
Operating range: from 1 to 39 m3/h with a head of up
to 23 m.
Liquid temperature range: +55°C.
Pumped liquid: ground water, rain water, clear waste
water, black waste water and water from rivers and lakes.
