Automatic collection and lifting stations, used for
collecting and pumping civil and industrial waste water
in sewers.

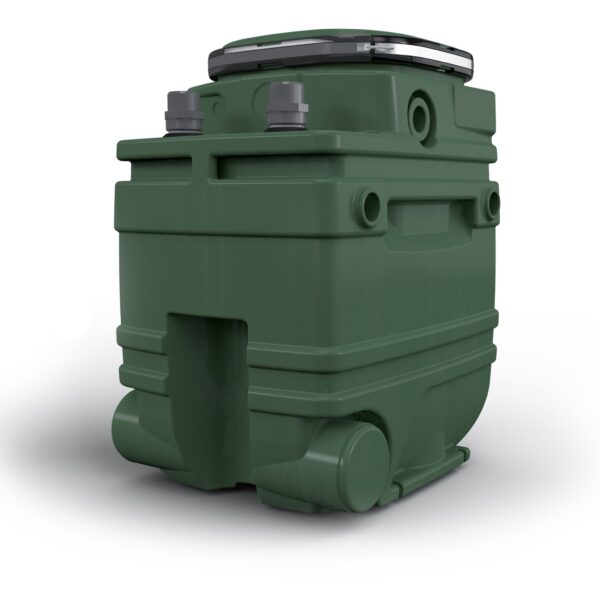

Comprises a high density 280 litre polythene tank with
removable cover complete with a watertight and gastight
seal. Fekafos series is suitable only for the use of one
or two not automatic single/triphase pumps from the
following: DN 50 (FEKA VS-VX 550 M-NA /T-NA – FEKA
VS-VX 750 M-NA /T-NA – FEKA VS-VX 1000 M-NA
/T-NA – FEKA VS-VX 1200 M-NA /T-NA) DN 65 (FEKA
2500.4T, FEKA 2515-FEKA 2500-FEKA 2700.2T) to
be ordered separately. -
Features
Complete with: 3 bulb floats mounted on a stainless
steel support, cable holder for connecting the float
and pump cables to the electrical panel (to order
separately according to performance range table),
DN50 and DN110 suction manifolds and 2” delivery
manifolds,connector for DN50 vent tube, lifting devices
(DSD2) for making pump maintenance easier. An alarm
float can be used on request.
Operating range: from 1 to 48 m3/h with a head of up
to 23 m.
Liquid temperature range: +50°C.
Pumped liquid: ground water, rain water, clear waste
water, black waste water and water from rivers and lakes.
