Description
-
Description

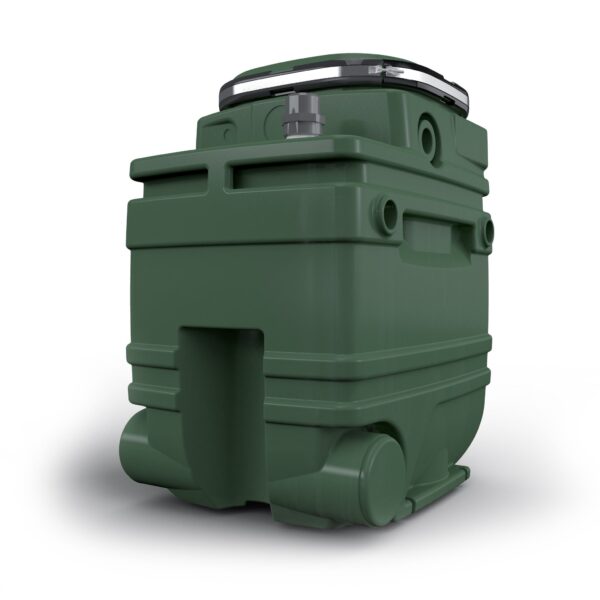

Automatic collection and lifting stations, used for
collecting and pumping civil and industrial waste water
in sewers. Comprises a high density 280 litre polythene
tank with removable cover complete with a watertight
and gastight seal.
Fekafos series is suitable only for the use of one not
automatic single/triphase pump from the following: DN
50 (FEKA 600 M-NA/T, FEKA VS/VX 550-750-1000-
1200 M-NA/T GRINDER 1000-1200-1600 T, GRINDER
1400 M-1800 T, FEKA 1400 M-1800 T, FEKA 2015 –
2030.2TNA) DN 65 (FEKA 2500.4T, FEKA 2515-FEKA
2500-FEKA 2700.2T), to be ordered separately.
Complete with: 2 bulb floats mounted on a stainless
steel support, cable holder for connecting the float and
pump cables to the electrical panel (to order separately
according performance range table), DN50 and
DN110 suction manifolds and 2” delivery manifolds,
connector for DN50 vent tube, lifting device (DSD2) for
making pump maintenance easier. An alarm float can be
used on request. -
Features
Operating range: from 1 to 48 m3/h with a head of up
to 23 m.
Liquid temperature range: +55°C.
Pumped liquid: ground water, rain water, clear waste
water, black waste water and water from rivers and lakes.
