Description
-
Description

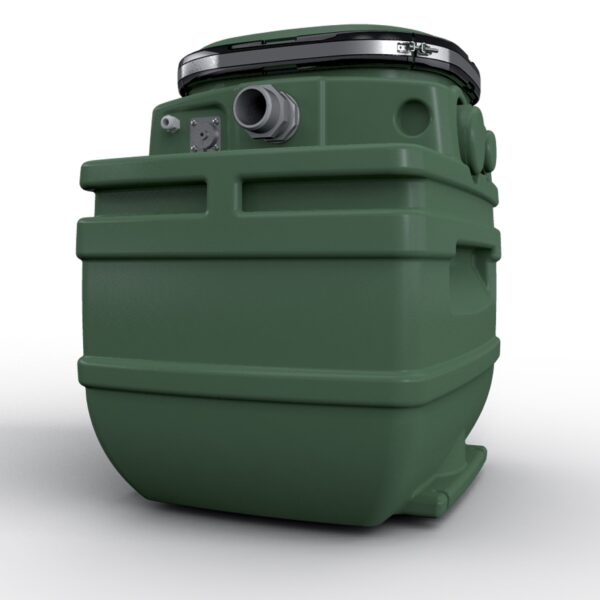

Automatic collection and lifting stations, used for
collecting and pumping civil and industrial waste water
in sewers. Comprises a high density 200 litre polythene
tank with removable cover complete with a watertight
and gastight seal.
Fekafos series is suitable only for the use of one not
automatic single/triphase pump from the following: FEKA
600 M-NA – FEKA VS-VX 550 M-NA /T-NA – FEKA
VS-VX 750 M-NA /T-NA – FEKA VS-VX 1000 M-NA
/T-NA – FEKA VS-VX 1200 M-NA /T-NA, GRINDER
1000-1200-1600T, GRINDER 1400 M -1800 T, to be
ordered separately.
Complete with: 2 bulb floats mounted on a stainless
steel support, cable holder for connecting the float and
pump cables to the electrical panel (to order separately
according to the performance range table). -
Features
Complete with: 2” PVC unions, DN50 and DN110
suction manifolds and 2” delivery manifolds.
Complete with connector for DN50 vent tube.
An alarm float can be used on request.
Operating range: from 1 to 32 m3/h with a head of up
to 23 m.
Liquid temperature range: +50°C.
Pumped liquid: ground water, rain water, clear waste
water, black waste water and water from rivers and lakes.
