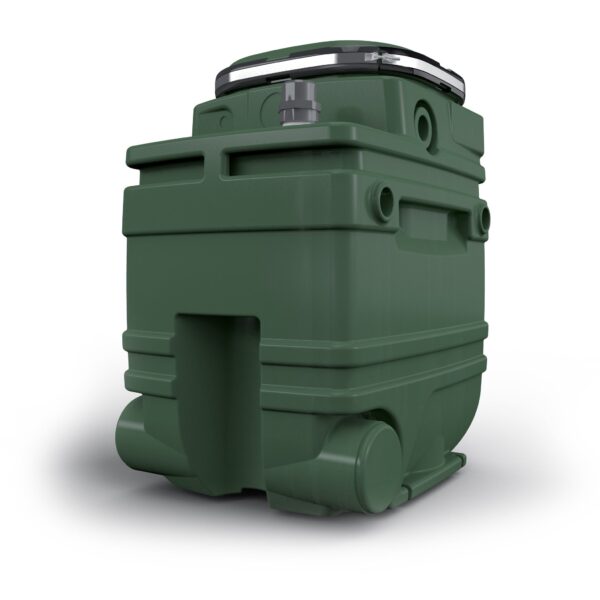

  Automatic collection and lifting stations, used for
  collecting and pumping civil and industrial waste water
  in sewers. Comprises a high density 280 litre polythene
  tank with removable cover complete with a watertight
  and gastight seal.

• Features
  Fekabox series is suitable only for the use of one single
  phase automatic pump from the following: FEKA 600
  M-A – FEKA VS 550 M/A – FEKA VS 750 M/A – FEKA
  VX 550 M/A – FEKA VX 750 M/A, GRINDER GL 1000
  MA to be ordered separately.
  Complete with: special cable holder, DN50 and DN110
  suction manifolds and 2” delivery manifolds.
  Complete with connector for DN50 vent tube. An alarm
  float can be used on request. Complete with lifting device
  (DSD2) for making pump maintenance easier.
  Operating range: from 1 to 32 m3/h with a head of up
  to 23 m.
  Liquid temperature range: +50°C.
  Pumped liquid: ground water, rain water, clear waste
  water, black waste water and water from rivers and lakes.
