Description
-
Description

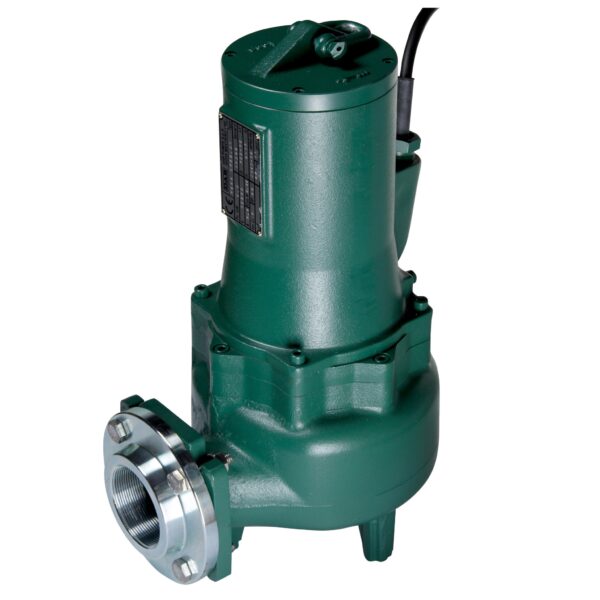

Cast iron submersible pumps with the vortex impeller
for sewage, suitable for foul waste water with solid
contents with the 62 mm as maximum diameter.
Technopolymer upper cover with the handle. Nylon
vortex impeller with the fiber glass abrasion proof
resistance. Motor body, hydraulic section and any
impeller in cast iron EN GJL 200. Single mechanical
seals pump side in silicon carbide/silicon carbide and
radial seal in oil chamber. On request : oil chamber
with water level detector kit.. Dry type asynchronous
sealed motor. Rotor mounted on ball bearings to
ensure silent running and long life. For single phase
version, capacitor and ove-rcurrent protection are set in
external control box supplied with Schuko plug.
For three phase versions, thermal and over-current
protection are responsibility of the user. -
Features
Motor protection rating: IP 68
Insulation class: F
Continuous duty with completely immersed pump.
The single-phase version can be equipped with float
switch for automatic starting and stopping of the
pump.Supplied as standard with 10 mt H07RN-F
power cable.
Operating range: from 6 to 48 m3/h with head up to
17 mt.
Liquid quality requirements: Non-aggressive
sewage, drain water
Liquid temperature range: From 0° to + 40°.
Maximum immersion depth: 20 mt
Installation: portable, in vertical position.
Free passage: 62 mm.
