Description
-
Description

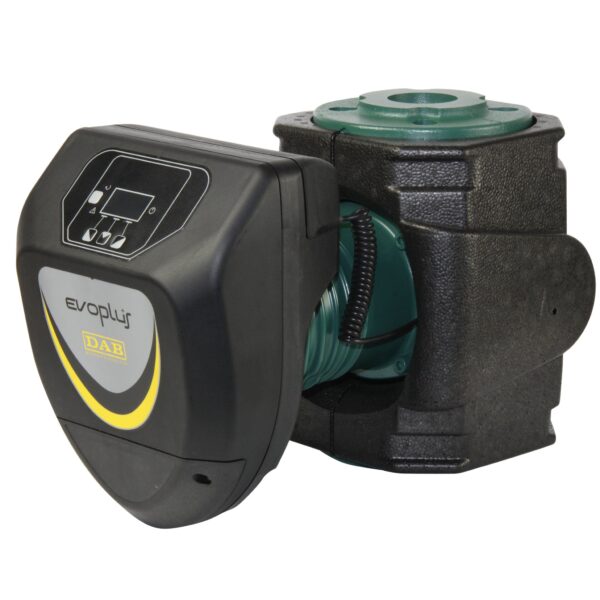

EVOPLUS electronic circulators can be used in heating,
ventilation and air conditioning systems for residential and
commercial buildings. In all correctly sized installations,
the electronically controlled wet rotor pumps constantly
ensure sufficient power and, simultaneously, lower noise
emissions, greater comfort and a significant reduction in
running costs. All models fitted with flanged pump body
are available in both single and twin versions. The user
interface is easy to use and easy to understand. -
Features
Circulator protection rate: IP 44.
Insulation class: F.
Standard voltage: single-phase 220/240V, 50/60Hz.
In accordance with European standards:
EN 61800-3 – EN 60335-1 – EN 60335-2-51.
Operating range: from 2 to 75.6 m3/h with head up
to 18 meters.
Liquid Temperature range: from -10 °C to 110 °C.
Pumped liquid: clean, free from solids and mineral oils,
not viscous, chemically neutral, close to the properties of
water (max. glycol contents 30%).
Maximum working pressure: 16 bar (1600 kPa).
Standard flanging:
DN 32, DN 40, DN 50, DN 65, PN 6 / PN 10 / PN 16 (4 slots),
DN 80 e DN 100, PN 6 (4 slots)
Installation: with horizontal motor shaft.
