Description

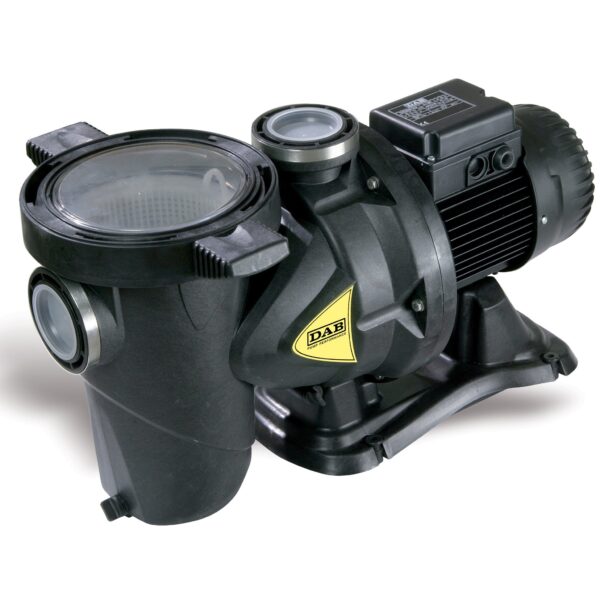

High efficiency self-priming centrifugal pumps with built in
large capacity prefilter. Extremely quiet runningand
great reliability, developed for water circulation and
filtration in domestic and residential swimming pools.
Suitable also for special applications that call for
handling of aggressive liquids, in fish farms, agriculture
and industry. Pump body in fibreglass reinforced
technopolymer. Strainer cover in clear antioxidant
polycarbonate to guarantee constant visibility through
time. Nylon strainer. Impeller in fibreglass-reinforced
technopolymer developed to ensure total coverage and
isolation of the motor shaft from the pumped liquid.
Diffuser in reinforced technopolymer. Mechanical seal
in carbon / alumina / NBR / AISI 316. Pump body O-rings
in NBR, threaded fasteners and reinforcing rings in AISI
304. Butterfly drain plugs that can be removed and
refitted without tools.
Asynchronous continuous duty 2-pole motor (S1)
with generous range of power ratings from 0.5 HP
to 3 HP, single phase and three-phase (see technical
specifications). Motor casing in die cast aluminium with
electrophoresic surface treatment to prevent oxidation
even in aggressive environmental conditions. Baseplate
supplied as standard with rubber mounts to reduce
vibration transmission.
Single phase version with integral thermal and
overcurrent protection and permanent split capacitor
(PSC), assembled inside the terminal box for all versions. -
Features
Motor and terminal box protection rating: IP55
Insulation class: F
Ball bearings:
water-proof,sealed,resistant to water and humidity.
Motor construction to EN 60335-2-41 standards
Standard voltage: Single phase 220-240V 50Hz
Three-phase 230/400V 50Hz
Operating range: up to 42 m3/h with pressure head
of up to 22 m
Pumped fluid: clean water or water slightly
contaminated with suspended particulate, long fibre;
highly aggressive water with high percentage contents
of chlorine/bromine and PHMB (Polyhexamethylene
Biguanide) or water treated with chlorine electrolytic
process.
Liquid temperature range: up to 60°C
Maximum ambient temperature: +50°C
Maximum operating pressure: 2,5 bar
Installation: fixed or portable in horizontal position
Special executions on request: alternative
voltages and/or frequencies
Fittings on request: 2”/50 – 63 kit (two fittings +
O-ring – see “Accessories”)
Reference standard: IEC – 60364.
