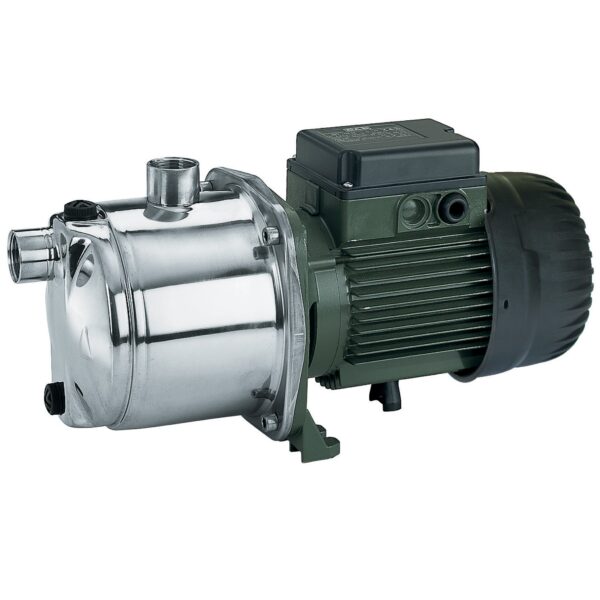

  Multistage horizontal centrifugal pump, featuring
  extremely silent running suitable for domestic use for
  water supply and pressurisation, irrigation of gardens
  and vegetable gardens, and moving water in general.
  Euro: pump body in 200 UNI ISO 185 cast iron.
  Euroinox: stainless steel pump body.
  Eurocom: technopolymer pump body.
  Motor support in die-cast aluminium, seal holder in AISI
  304 steel. Mechanical seal in carbon/ceramic. Rotor shaft
  in AISI 304 steel. Rotors, diffuser bodies and diffusers in
  technopolymer. Adjustment rings in stainless steel.

• Features
  Protection level of motor: IP 44
  Protection level of terminal board: IP 55
  Insulation class: F
  Operating range: from 10 to 120 l/min. with a head
  of up to 72 m.
  Pumped liquid characteristics: clean, free from solid
  or abrasive substances, not viscous, not aggressive,
  not crystallised, chemically neutral and close to the
  characteristics of water.
  Liquid temperature range:
  from 0°C to +35°C C for domestic use (EN 60335-2-41)
  from 0°C to +40°C for other uses.
  Maximum ambient temperature: +40°C
  Maximum operating pressure: 8 bar (800 kPa)
  Euroinox: self-priming.other uses.
  Maximum ambient temperature: +40°C
  Maximum operating pressure: 8 bar (800 kPa)
  Euroinox: self-priming.
