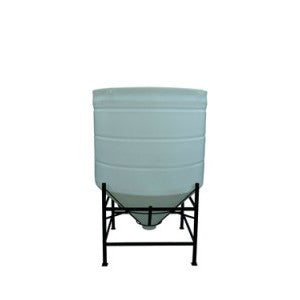

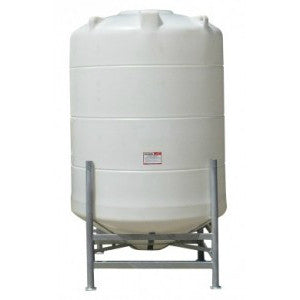

• Price on application depending on product. The Cone Bottom Tank is used where 100% drainage is an advantage. The 60 degree cone tank means that the liquid completely drains while helping address concerns with vortexing. These polyethylene cone tanks are rotationally moulded which means there is a consistent wall thickness. This high impact chemical resistant tank is manufactured from high-density food grade polyethylene. This conical tank is UV stabilised which means they are suitable for outdoor installations. In natural, these tank are translucent which means the contents of the tank can be easily viewed. These tanks are suitable for liquids of up to 1.7 specific gravity. The cone bottom tank is manufactured with lifting lugs for ease of installation. There are outlet locations on the base, side and top of the tank. Client customisation includes additional bulkheads, welded flanges, vented or non-vented lids etc. to meet the specific needs. There are great advantages of these cone tanks. Uses include: • Beer, cider brewing and wine making tank • Molasses, liquid feed and liquid fertilizer storage • Chemical holding & mix tank • Industrial storage tank and chemical supply tanks • Industrial mix tank and inductor tanks • Biodiesel processing, biodiesel reactor tank and biodiesel conical tank • Water storage, settlement and sludge tank • Holding, surge and balance tanks • Process mix tanks Cone tank capacities stated may be brim full therefore the useable capacity may be less. This Open Top Cone Tank (Conical Tank) with Mixer Frame in a steel stand is used in the process environment where 100% drainage is an advantage and to address concerns as to vortexing. The mixer frame enables easy mounting of mixers and agitators on the top of the tank. The Open Top Cone Tank with Mixer Frame are designed with inlet/outlet locations on base, side and top of the tank. We also offer customization option to our clients to meet the specific needs of our clients such as bulkheads, welded flanges, etc. Contact us today for a quote on the cone bottom tank.

• Code	Capacity Litres	Capacity Gallons	Dimensions with Frame	Dimensions (mm)
  17520360	750	–	1200mm x 1460mm	1200 x 1160mm

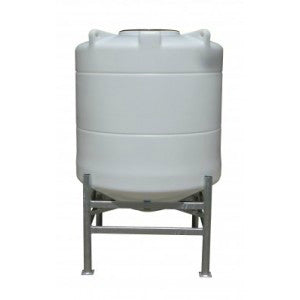

  17520530	1360	299	1200mm x 1782mm	1200mm x 1482mm

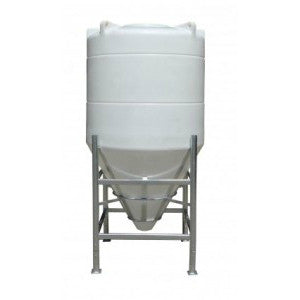

  17520560	1600	354	1200mm x 2440mm	1200mm x 2160mm
  17520830	2100	462	1200mm x 2482mm	1200mm x 2182mm
  17520860	2350	517	1200mm x 3142mm	1200mm x 2860mm
  17521030	2700	597	1400mm x 2900mm	1400mm x 2400mm

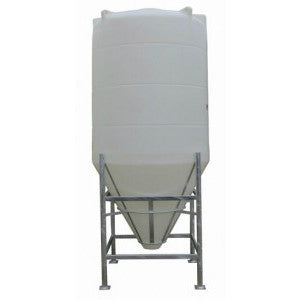

  17521060	3150	698	1400mm x 3200mm	1400mm x 2837mm
  17521130	3250	715	1400mm x 3160mm	1400mm x 2674mm

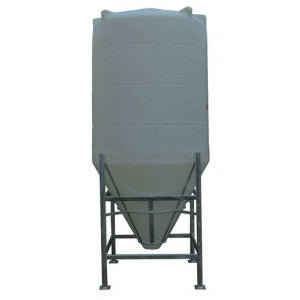

  17521160	3650	803	1400mm x 3447mm	1400mm x 3147mm
  17521215	4200	925	1900mm x 2400mm	1900mm x 1910mm
  17521245	4900	1079	1900mm x 2850mm	1900mm x 2555mm
  17521515	5200	1145	1900mm x 2660mm	1900mm x 2300mm

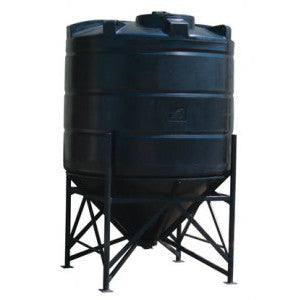

  17521545	5900	1255	1900mm x 3400mm	1900mm x 2900mm
  17521260	6000	1320	–	1900mm x 3215mm

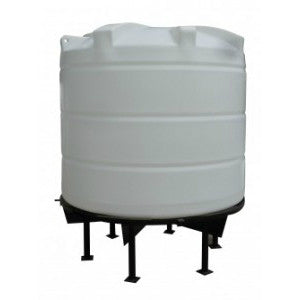

  17521615	6200	1365	1900mm x 3100mm	1900mm x 2650mm

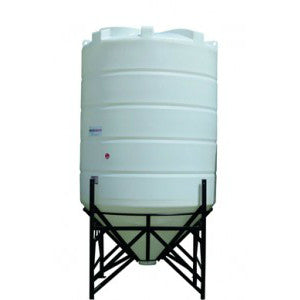

  17521645	6900	1520	1900mm x 3500mm	1900mm x 3150mm
  17521560	7000	1541	–	1900mm x 3600mm
  17521660	8000	1762	–	1900mm x 4000mm
  17521460	10000	2200	–	2600mm x 3400mm
  17522515	13000	2863	2600mm x 3400mm	2600mm x 2900mm
  17522530	14000	3082	–	2600mm x 3360mm

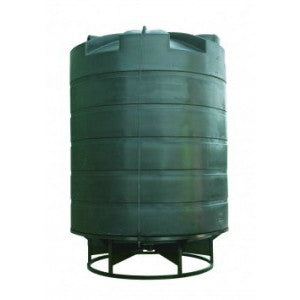

  17523015	17000	3744	2600mm x 45000	2600mm x 4100mm
