Description
-
Description

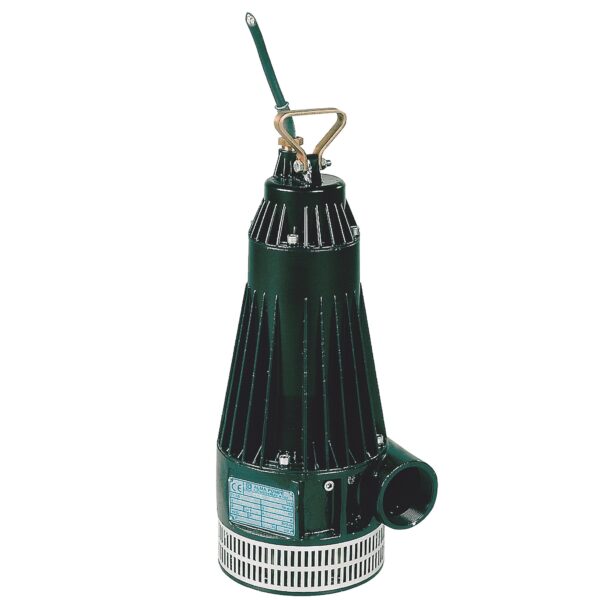

Submersible centrifugal pump with Adjustment
Ring Impeller suitable for lifting water from
drainage waste containing solids having maximum
size of 5 mm. Top cover and motor body in anodized
die cast aluminium. Impeller in ENGJL 200 cast
iron. Pump body in ENGJL 200 cast iron. Double
mechanical seals in oil chamber: motor side carbon/
alumina, pump side in silicon carbide/silicon carbide.
Dry type asynchronous sealed motor. Rotor mounted
on ball bearings to ensure silent running and long life.
In the single phase version capaticor is supplied in
external control box equipped with current protection -
Features
Protection level: IP 68.
Insulation class: F.
Continuous duty, with completely immersed pump. The
single-phase version can be equipped with float switch
for automatic starting and stopping of the pump. Supplied
as standard with 10 metre H07RN-F power cable.
Operating range: from 3 to 66 m3/h with head up to 17 mt.
Liquid quality requirements: Clear drain not
aggressive water.
Liquid temperature range: from 0° to + 40°.
Maximum immersion depth: 10 mt.
Installation: portable, in vertical position.
Free passage through the suction grid: 5 mm
