Description
-

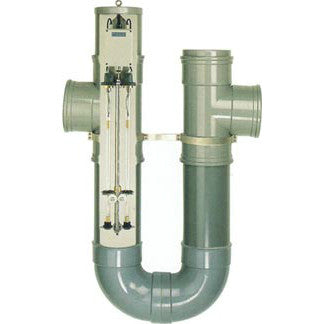

DaRo UV Systems plc produce small scale, modular effluent disinfection units complete with fully automatic quartz wiping systems for flows of between 1 ƒ?? 40 m3/hr. Developed specifically for use in heavily contaminated fluid streams our self-cleaning systems have proven reliability and offer low maintenance for remote sites. The automatic wiping system allows minimal servicing and reduces maintenance to an annual service. Standard modules EFF1, EFF2 and EFF4. The UV systems are compact and compatible with proprietary soil pipe fittings. The unit can also be installed in pumped, gravity fed, digestor units, BAFF units or retrofit configurations. The standard chamber is made of plastic and stainless steel and is available in different formats: U-Tube, Dip chamber and Pumped chamber.
Standard EFF units can be upgraded if site parameters change, without additional site works. Operators can have greater confidence when choosing a system that will cope with future growth as treatment capacity can be altered according to demand. The carefully thought out design simplifies installation and minimise on site construction work as a whole.
Larger multiple lamp arrays may also be custom designed for built in or skid packages. -
-
All systems are supplied with automatic cleaning devises.
*Flow rates are based on effluent quality 20/30 (BOD/SS) giving UV transmission @ 45% per cm¶ý. UV Dose of 30mJ/cm¶ý achieved.Please contact us for further information on this range of UV systems.
