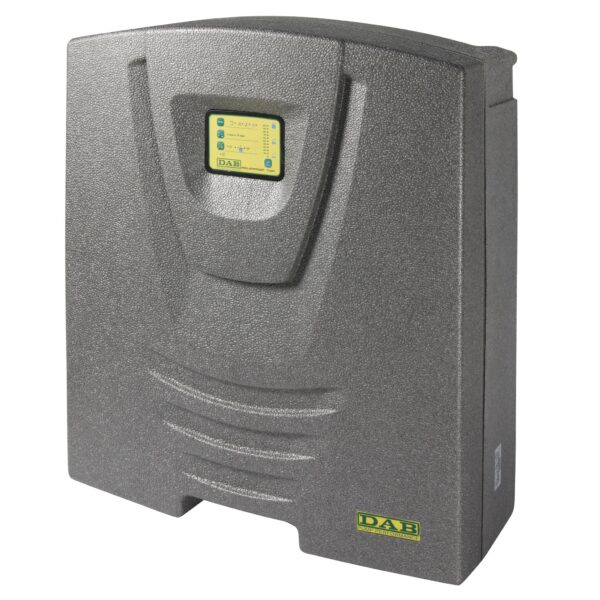

Aquaprof is a complete and pre-assembled system
for using rainwater in one or two-family houses. The
system comprises a recyclabe polyethilene console, a
completely automatic electronic control unit, three-way
automatic valve and electropump EuroInox 30/50 M or
EuroInox 40/50 M series. Supplied with wall bracket as a
standard and float switch with 20 mt of cable for Aquaprof
Basic version, or probe sensor level with 20 mt. of cable
for Aquaprof TOP. -
Features
Protection Level: IP 42
Working ambient temperature:
min. +5°C – max. +40°C
Max. Flow: 80 lt/min.
Max. Head: 42,2 m. (Aquaprof 30/50)
57,7 m. (Aquaprof 40/50)
Liquid temperature range: from + 5°C up to +35°C
Max. Working pressure of the system: 6 bar (600kPA)
Max. Pressure of main supply line:4 bar (400kPA)
Max. Height of working uses: 15 meters
Potable water connector: 3/4”
Pump suction and delivery ports 1”.
