Description
-
Description

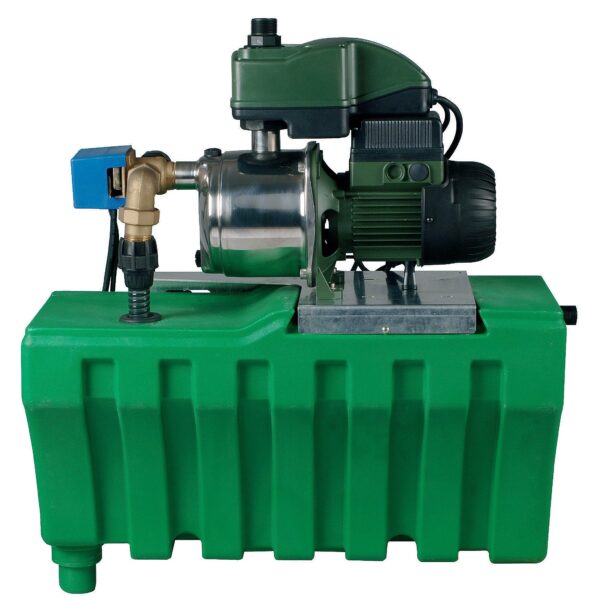

Active Switch is a complete and pre-assembled system for
using rainwater in one or two-family houses. The system
comprises a recyclabe polyethilene tank, an automatic
pump Active EI 30/50 M serie and a three-way automatic
valve assembled on suction port of the pump.
The system has been designed to be wall-mounted.
Supplied with wall bracket and float swich, with 20 mt. of
cable, as a standard. -
Features
Working ambient temperature: min +5°C – max +40°C
Max. Flow: 80 l/min
Max. Head: 42,2 m
Liquid temperature range: from +5°C up +35°C
Max. Working pressure of the system: 6 bar (600kPA)
Max. Pressure of main supply line: 4 bar (400kPA)
Max. Height of working uses: 15 meters
Potable water connector: 3/4”
Pump suction and delivery ports: 1”.
