Description
-
Description

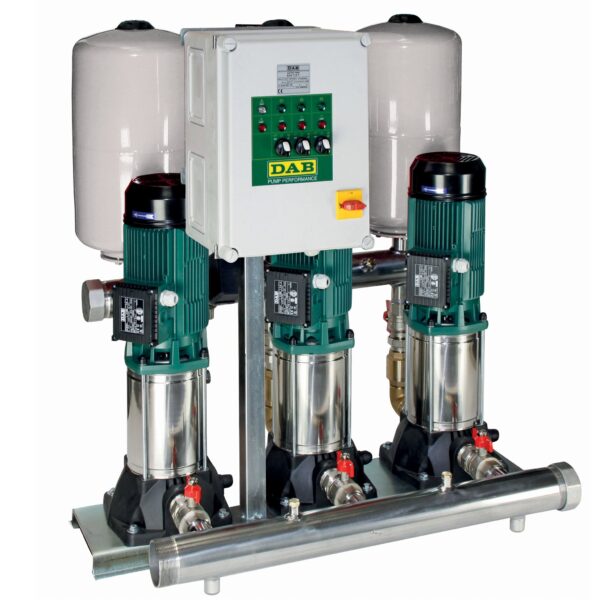

Water lifting sets specifically suitable for domestic
applications and small systems for civil, agricultural or
industrial uses.
The use of multistage vertical axis centrifugal pumps is
a guarantee of high performance and efficiency levels.
These pumps are characterised by their compact
dimensions, rugged construction, extreme reliability and
very low noise operation. -
Features
Control panel in impact-resistant self-extinguishing
plastic with IP 55 protection rating. The control panel
enclosure houses the main power switch, thermal
magnetic cut-outs to protect the electric pumps, electric
pump starting sequence changeover system, low
voltage 24V control circuit, MAN-0-AUT selectors, (start
pushbuttons for single-phase version panel), indicator
lights on front panel.
Installed on specifically designed column mounted on
pumps skid.
3 preset pressure switches for pumps starting / stopping.
The control panel of 2KVC and 3KVC pump sets is
prearrange for connection of:
Pressure switch or float switch kit to protect against dry
running (*)
Overpressure cut-out pressure switch kit (*)
(*) Optional items available on request
The pump sets are supplied in a strong carton on a
wooden pallet complete with installation/maintenance
instructions and wiring diagram.
