Specialized Pumps

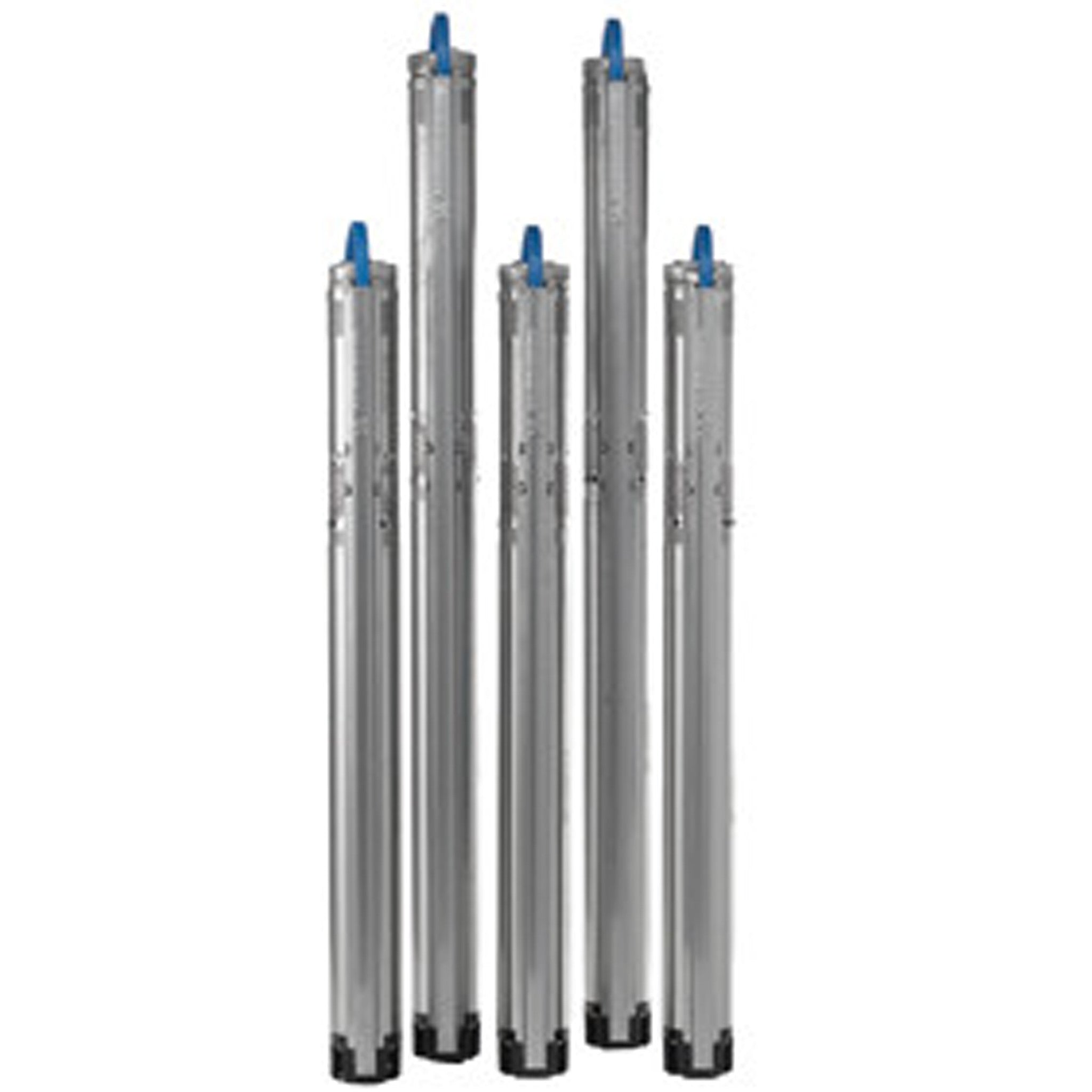

Description Specification Downloads The Grundfos SQ pump 3" submersible pump range offers a wide performance range, you're sure to find a model that will suit your individual requirements. The SQ is a compact 3" multistage centrifugal pump that allows you to install it in a borehole as small as itself. With the built-in electronics, the SQ family is very easy to install and operate. And it guarantees a reliable water supply at all times. Equipped with the permanent magnet motor, the flexible and compact pump range offers excellent efficiencies and delivers up to 200m pump head. Connecting your SQ pump to the Grundfos CU301 control box, furthermore offers the possibility of creating a constant pressure water supply. Applications SQ/SQE pumps are suitable for both continuous and intermittent operation for a variety of applications: Ground water supply - private housing, small waterworks, small irrigation system Liquid transfer in tanks Pressure boosting Environmental applications - remedial pumping or sampling   Features and

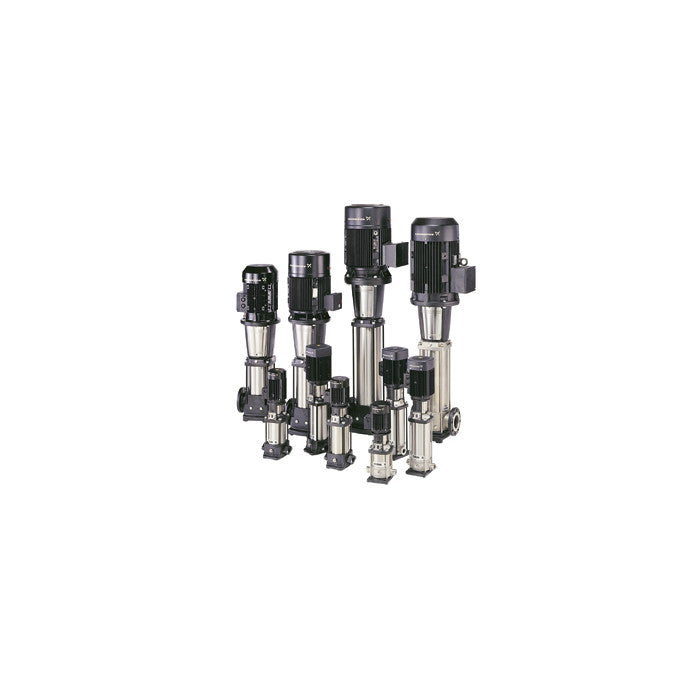

Description Specifications Downloads The basic CR pump range, which applies to almost any industrial solution, is in itself the broadest range available. With our modular approach, we have made it even broader. The basic CR pump range is available as standard in three different materials including two grades of stainless steel, and all-titanium versions in eleven flow sizes, capable of producing up to 40 bars of pressure, and with a variety of shaft seals, rubbers, supply voltages and frequencies. These pump parts, typically vulnerable to difficult liquids or particularly demanding operating conditions, have been optimised to the task and designed for specific requirements. Impressive as the CR range is, Grundfos offers much more. A complete range of pump solutions means that all industrial and domestic water applications can benefit from the Grundfos touch. Applications include: ? Process water systems ? Washing in cleaning systems ? Sea water systems ? Pumping of acids and alkalis ? Ultra filtration systems ? Reverse

Description Specifications Downloads The basic CR pump range, which applies to almost any industrial solution, is in itself the broadest range available. With our modular approach, we have made it even broader. The basic CR pump range is available as standard in three different materials including two grades of stainless steel, and all-titanium versions in eleven flow sizes, capable of producing up to 40 bars of pressure, and with a variety of shaft seals, rubbers, supply voltages and frequencies. These pump parts, typically vulnerable to difficult liquids or particularly demanding operating conditions, have been optimised to the task and designed for specific requirements. Impressive as the CR range is, Grundfos offers much more. A complete range of pump solutions means that all industrial and domestic water applications can benefit from the Grundfos touch. Applications include: ? Process water systems ? Washing in cleaning systems ? Sea water systems ? Pumping of acids and alkalis ? Ultra filtration systems ? Reverse

Description Specifications Downloads For CM1,CM3 and CM5 pumps comprising diaphragm pressure tank, pressure switch, pressure gauge and fittings. Max water temp. 40 deg C. 1" Integral Non return Valve for installation under Pressure tank assembly (necessary extra for above set)

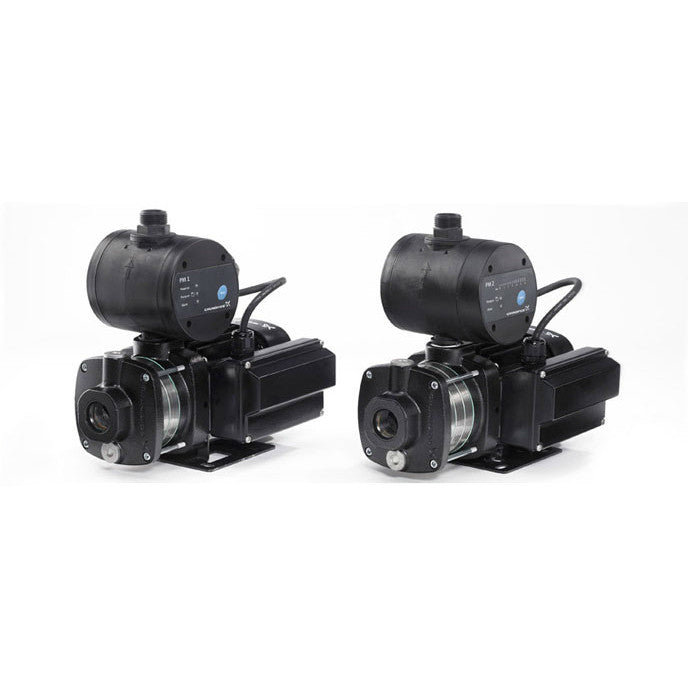

Description Specifications Downloads Modern technologies have brought a high degree of comfort to people within their homes by providing a strong water supply. Grundfos offers complete tailored pressure boosting systems for domestic water supply that ensure optimal water pressure for household applications. CM Booster, CME Booster comes in different versions: ? CME Booster ? CM Booster PM2 ? CM Booster PM1 The CME Booster provides constant water pressure for a variety of domestic applications. This means that the end-user is no longer bothered by fluctuations in water pressure due to a rise or fall in demand, or from pump starts and stops. CME Booster keeps the pressure within the home up regardless of usage. The constant pressure feature provides the benefit of increased comfort. In addition the CME Booster makes it possible to personalise the water pressure. By the touch of a button the pressure level is increased or decreased as desired. Features ? Constant pressure via integrated speed control
