Description Specification Downloads General Description E.Sybox Mini 3 & 250ltr Storage Tank 770 x 770 x 965mm high All the benefits of the Esybox but now with 250ltr break tank to cope with low in-flow rates E.Sybox Mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimisation of energy consumption. The new 3-rotor model ensures further noise reduction and energy consumption.Managing the water pressure in your home has never been so simple and quiet Features GUARANTEES CONSISTENT WATER PRESSURE ULTRA LOW NOISE NO VIBRATIONS REDUCED ENERGY CONSUMPTION EXTREMELY COMPACT SIZES INSTALLATION OPTIONS: HORIZONTAL, VERTICAL WALL INSTALLATION THANKS TO E.SYWALL QUICK TO INSTALL EASY TO ADJUST EQUIPPED WITH A LARGE DISPLAY EASY MAINTENANCE Specification Operating range: capacity up to 80 l/min; head up to 50 m Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral. Liquid temperature range: from 0°C to
Description Specification Downloads General Description E.Sybox Mini 3 has a different appearance than any other booster sets and is small and completely integrated. Offering a constant smooth pressure with no pressure fluctuations as can be experienced with traditional Pressure Switch & Vessel arrangements. Once you install and use it, you realise that the real difference in sound and performance.E.Sybox Mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimisation of energy consumption. Suitable for use with potable water in domestic systems and gardening applications.The new 3-rotor model ensures further noise reduction and energy consumption.Managing the water pressure in your home has never been so simple and quiet Features GUARANTEES CONSISTENT WATER PRESSURE ULTRA LOW NOISE NO VIBRATIONS REDUCED ENERGY CONSUMPTION EXTREMELY COMPACT SIZES INSTALLATION OPTIONS: HORIZONTAL, VERTICAL WALL INSTALLATION THANKS TO E.SYWALL QUICK TO INSTALL EASY TO ADJUST EQUIPPED WITH A LARGE DISPLAY EASY MAINTENANCE Specification Operating
Description Specification Downloads Description Totally automatic electric submersible pump, with wide support base specially designed to increase stability and enable the option of operation in positions not totally perpendicular to the ground. Integrated fl oat for automatic operation, effi cient and maintenance-free operation pump. Features Electric pump totally constructed in thermoplastic water resistant material. Motor, motor shaft and hardware in stainless steel. Triple interposed ring seal with oil pre-chamber. Integrated float for automatic operation, inserted in special housing accessible for seasonal cleaning when required. Continuous duty asynchronous submersible motor. Stator inserted in a stainless steel enclosure and covered with a cap to enclose wiring and capacitor. IP68 Protection rating Insulation class Supply voltage: single-phase 230V 50Hz Supplied with 10 metres of cable and schuko socket, 10 metres of cord to facilitate positioning above covers. A multi-hose fitting with clapet valve to simplify installation further.
Description Specification Downloads Description Self-priming centrifugal (Jetcom) or multistage (Eurocom) pump with excellent suction capacity even when there are air bubbles. Suitable for use with water containing small sand impurities. Especially suitable for water supplies in domestic systems: handling of aggressive water in general with chlorine contents (swimming pools). Pump body in technopolymer. Support and seal-carrier in AISI 316 STAINLESS STEEL. Carbon/ceramic mechanical seal. Rotor shaft in AISI 316 STAINLESS STEEL. Impellers, diffuser, Venturi tube, and sand guard in technopolymer. Clearance rings in stainless steel. Continuous duty asynchronous motor. Built-in motor overload cut out and a capacitor permanently on in the single-phase version. Protection for the three-phase version is the responsibility of the user. Features Motor protection level: IP 44 Terminals protection level: IP 55 Insulation class: F Standard voltage: 220/240V - 50 Hz single-phase 230/400V - 50 Hz three-phase Operating range: from 10 to 80 l/min with head of up to 58 m depending on the model Liquid quality

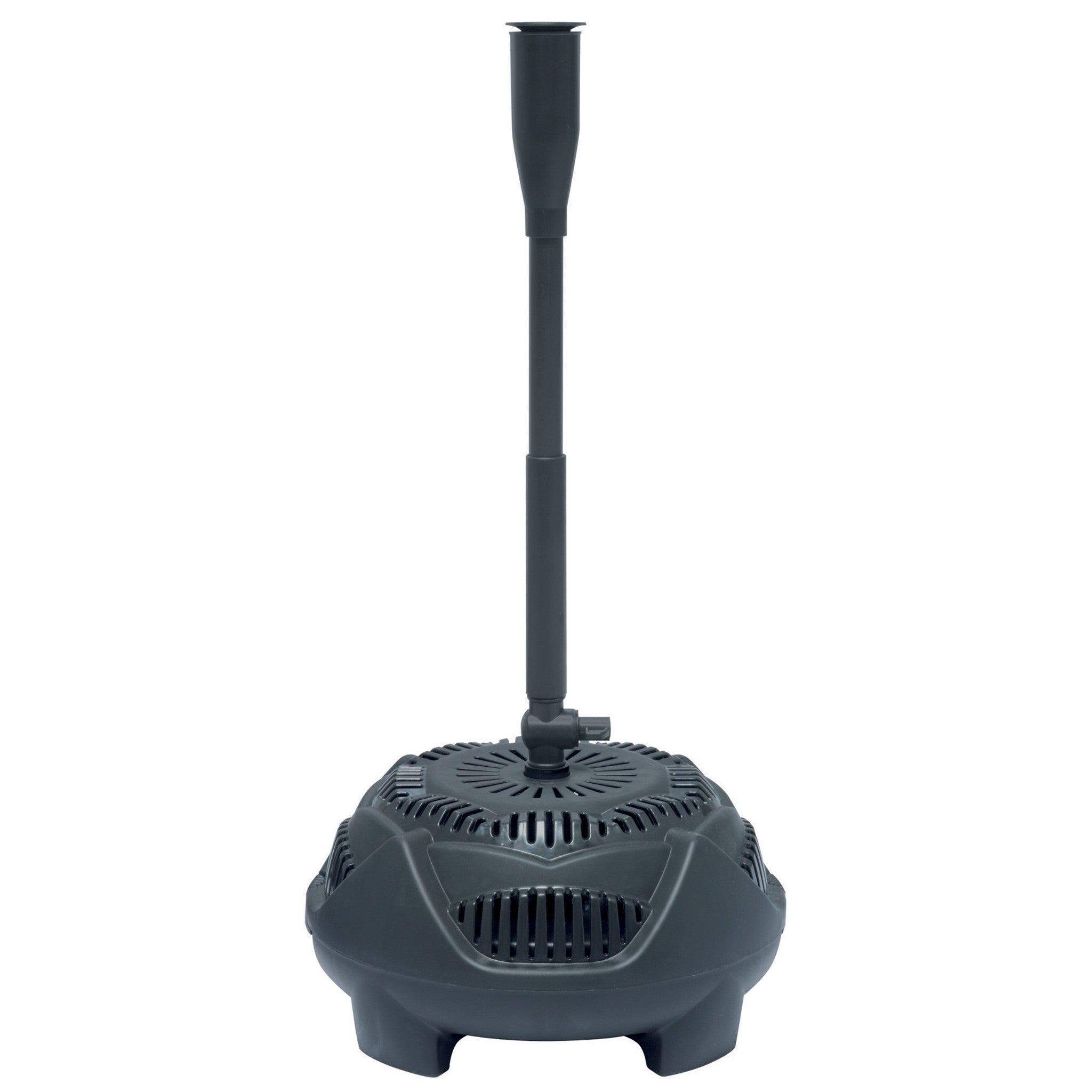

Description Fountain and pond pumps. Use of ceramic parts in order to reduce wear and tear. Filtering with a double grid, without sponge, to keep maintenance low. Thermally protected, any possible damage to the motor is avoided thanks to the thermo protector. Impeller designed to expel dirt and solid particles.
Description Specification Downloads Description PULSAR pumps, which are very silent running, can beinstalled inside boreholes and sumps and eliminates allpotential problems of suction and unpriming.Multi-stage close-coupled borehole pump with hydraulicsection below motor, which is cooled by the pumpedliquid. Impellers, diffusers, strainer and oil sump inabrasion-proof thermoplastic. Outer liner, stator sleeve,upper head with delivery connection and closing ring inAISI 304 stainless steel. Rotor shaft extension in AISI 304.Elastomers in NBR. Stainless steel screws.Double mechanical seal with interposed oil chamber,made of ceramic/carbon on motor side and siliconcarbide/silicon carbide on pump side.Submersible with continuous duty asynchronous motor.Rotor running on ball bearings, oversized to ensure lownoise and durability Built-in thermal and current overloadprotection and a capacitor permanently on in the singlephaseversion. To protect the three-phase motor useremote overload cut-outs in compliance with statutoryregulations.Constructed in compliance with CEI 2-3 and CEI 61-69(EN 60335-2-41) standards. Features Operating range: from 0.9 to 7.2 m3/h with head up to 86 metres. Maximum permissible sand quantity: 50 g/m3. Motor
