Drainage, Sewage & Wastewater Pumps

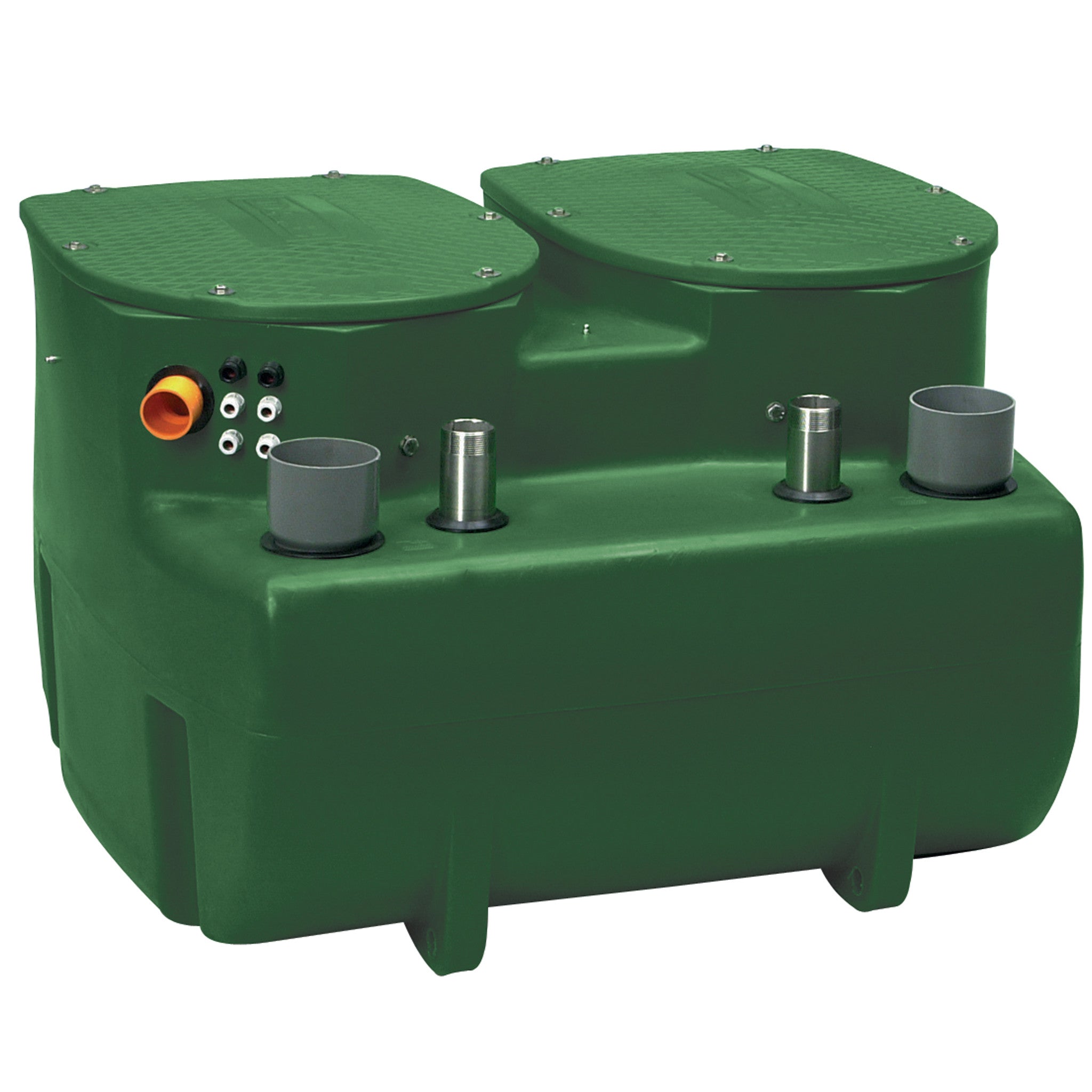

Description Specification Downloads Description Automatic collection and lifting stations, used for collecting and pumping civil and industrial waste water in sewers. Comprises a high density 550 litre polythene tank with 2 removable covers complete with a watertight and gastight seal. Fekafos series is suitable only for the use of one or two not automatic single/triphase pumps from the following: FEKA 600 M-NA/T, FEKA VS/VX 550-750-1000-1200 GRINDER 1000-1200-1600 T, GRINDER 1400 M-1800 T FEKA 1400 M-1800 T, FEKA 2015 - 2030.2TNA) to be ordered separately. Complete with: 3 bulb floats mounted on a stainless steel support, cable holder for connecting the float and pump cables to the electrical panel (to order separately according to performance range table), DN50 and DN110 suction manifolds and 2” delivery manifolds, connector for DN50 vent tube, 2 lifting devices (DSD2) for making pump maintenance easier. An alarm float can be used on request. Features Operating range: from 1 to 39 m3/h with a head of up

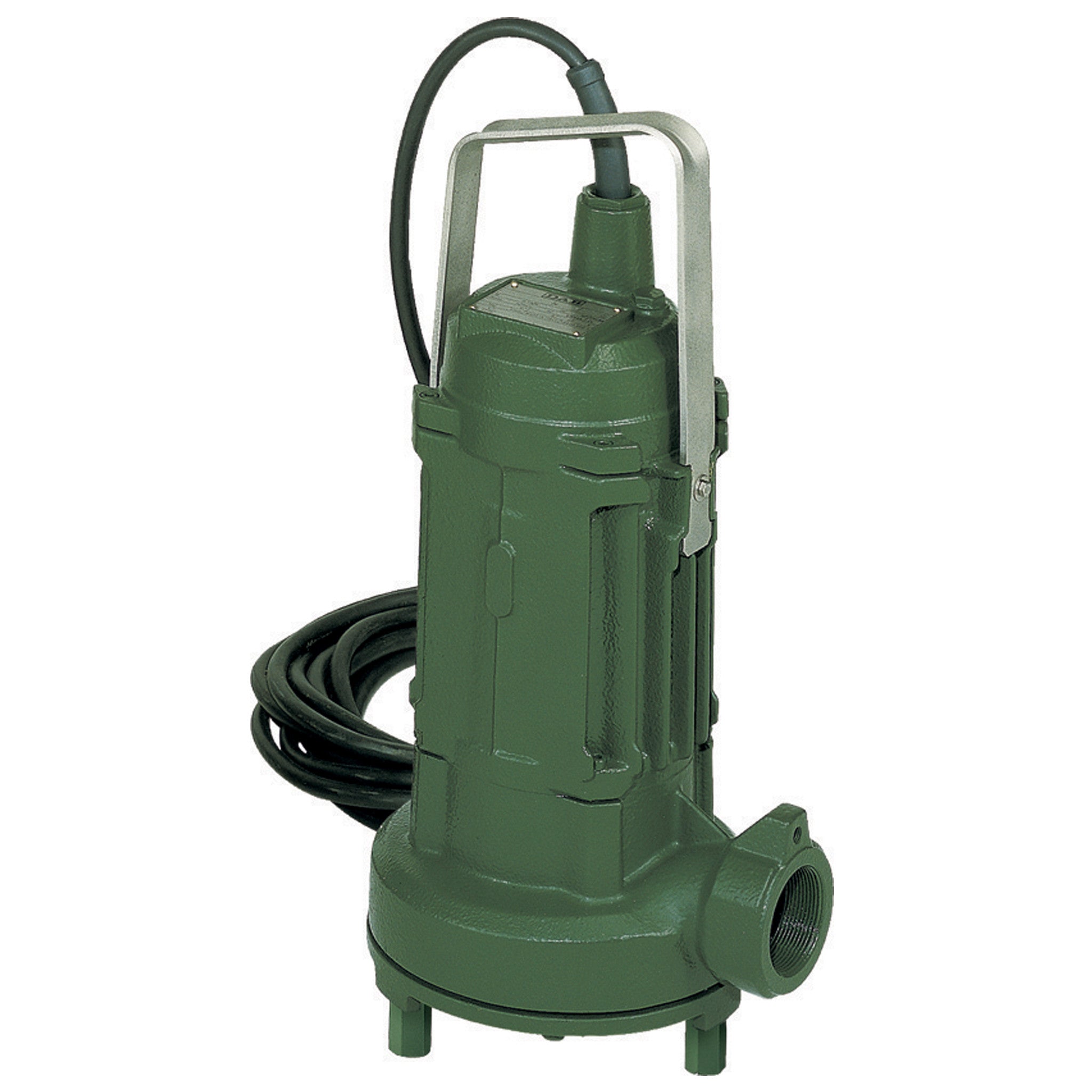

Description Specification Downloads Description Submersible pump with cast iron pump body, motor casing and adjustment ring impeller. Grinder device in micro casting steel. Stainless steel shaft, handle, filter, bolts and screws. Silicon/carbide mechanical seal, inspectionable oil chamber. Continuous duty submersible induction motor, in a watertight casing. Rotor mounted on oversized greased sealed-for-life ball bearings. Thermal protection in the windings, to be connected to the control panel. with 10 metres of neoprene rubber power cable. In order to operate, the pumps must be equipped with a control and protection system, supplied separately and not connected to the electropumps (see accessories). Features Liquid temperature range: from 0°C to +55°C. Operating range: from 2 to 9 m3/h with head up to 24,5 mt for thesingle-phase version and 26,5 mt for the threephase version. Liquid quality requirements: dirty waste water, untreated sewage containing solids and/or long fibres, always non aggressive. Liquid temperature range: from 0°C to +55°C. Maximum ambient temperature for pump operation with

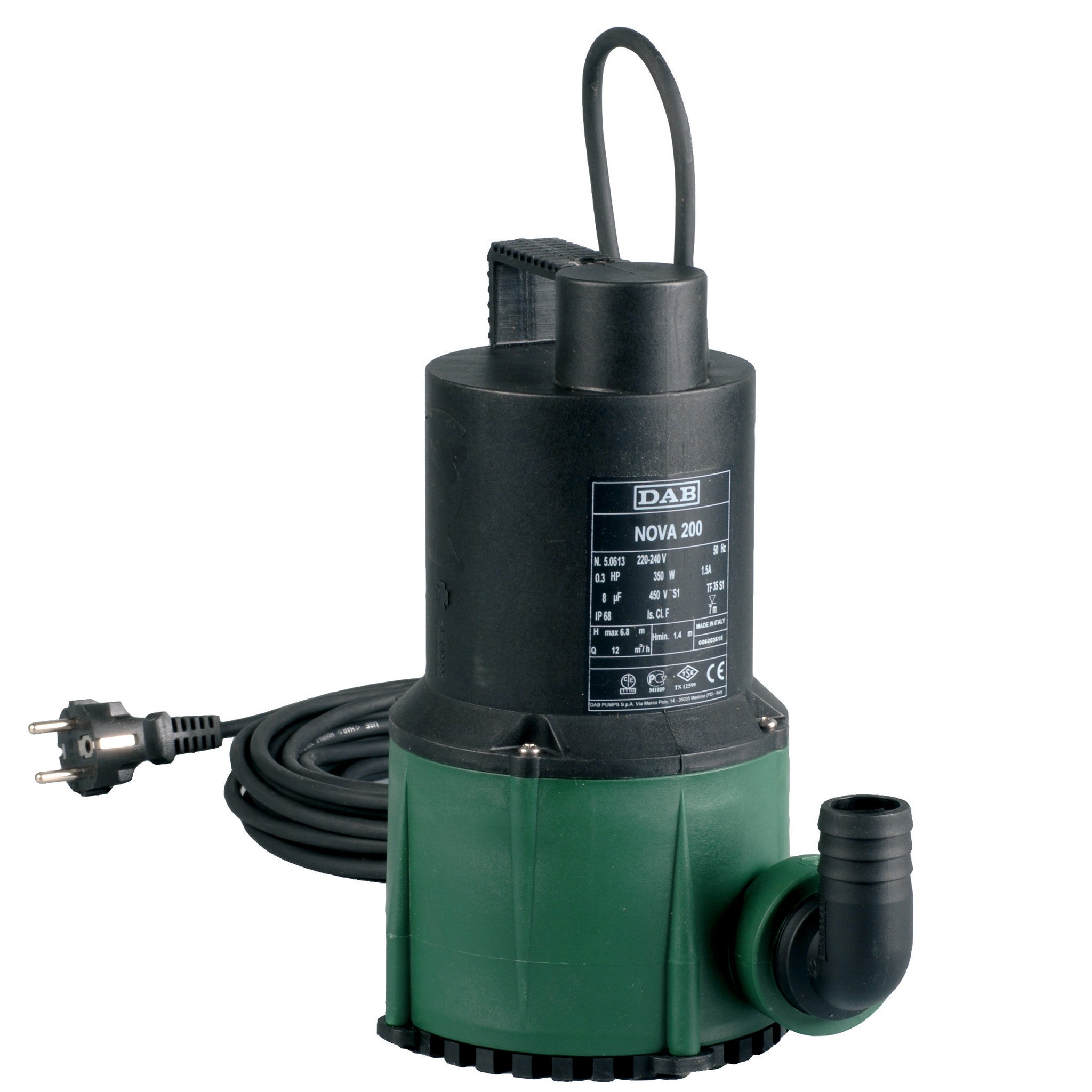

Description Pump body, impeller, cap and suction grid in technopolymer.Motor, rotor shaft and screws in stainless steel.Triple O-ring seal interposed with an oil precombustionchamber. Continuous duty submersible asynchronousmotor. Stator fitted in an airtight stainless steel casing.Rotor mounted on overdimensioned, greased-for-life ballbearings. Built-in thermal and current overload protectionand a capacitor permanently on in the single-phaseversion. For the protection of the three-phase motor it isadvisable to use a suitable overload protection complyingwith the regulations in force. Supplied with standardpower cables for the single-phase version:5 metres H05RN-F for: NOVA 180 M-ANOVA 300 M-ANOVA 600 M-A10 metres H05RN-F for: NOVA 180 M-NANOVA 200 M-NA10 metres H07RN-F for: NOVA 600 M-NAStandard cables supplied for the three-phase version:5 metres of HO7RN-F cable. For the single phase thestandard is a SCHUKO plug EEC VII.For special version available with special stainlesssteel motor shaft. Specification Features Operating range: from 1 to 16 m3/h with head up to 10.2 metres. Liquid temperature range: from 0°C to +35° C for domestic

Description Specification Downloads Description Pump body, impeller, cap and suction grid in technopolymer. Motor, rotor shaft and screws in stainless steel. Triple O-ring seal interposed with an oil precombustion chamber. Continuous duty submersible asynchronous motor. Stator fitted in an airtight stainless steel casing. Rotor mounted on overdimensioned, greased-for-life ball bearings. Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version. For the protection of the three-phase motor it is advisable to use a suitable overload protection complying with the regulations in force. Supplied with standard power cables for the single-phase version: 5 metres H05RN-F for: NOVA 180 M-A NOVA 300 M-A NOVA 600 M-A 10 metres H05RN-F for: NOVA 180 M-NA NOVA 200 M-NA 10 metres H07RN-F for: NOVA 600 M-NA Standard cables supplied for the three-phase version: 5 metres of HO7RN-F cable. For the single phase the standard is a SCHUKO plug EEC VII. For special version available with special stainless steel motor shaft.

Description Specification Downloads Description Submersible pumps specifically designed for uses in narrow pits with dimensions down to 20 cm x 20 cm. Suitable to pump clear water containing particles with maximum diameter up to 5 mm.   Features Pump with built-in float switch. Anti-corrosive and rust-proof materials. Integrated float switch. Low suction capability: 2 – 3 mm (manual mode). Very low priming and starting level of the pump: 10 – 15 mm (manual mode). Knob for manual or automatic operation. Easy access through sliding cover to float switch for cleaning. Motor with thermal overload protection. Excellent cooling of the motor that enables the pump to operate even when it is partially submersible. Supplied with power cable with plug, non return valve and 4-step fitting.

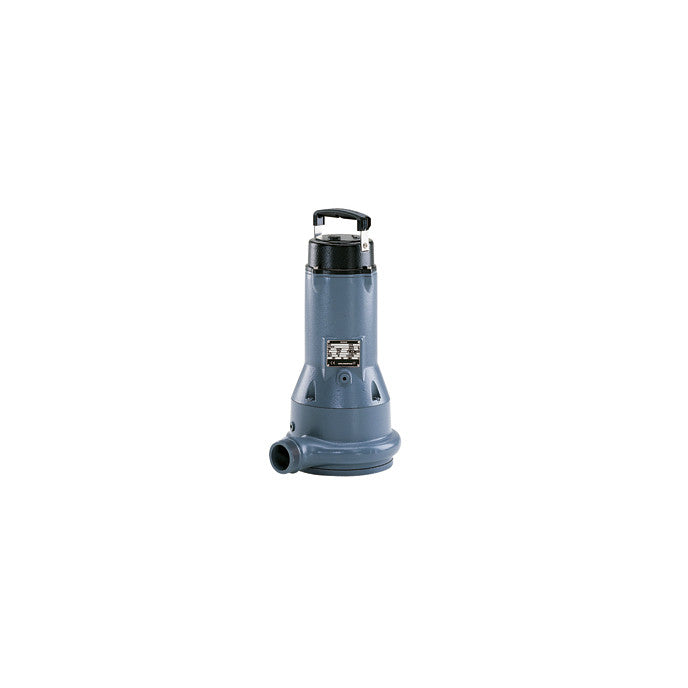

Description Specifications Downloads The APG pumps are submersible pumps with horizontal discharge port and are specifically designed for the pressurised pumping of sewage and wastewater. The pumps are equipped with a cutter system which cuts sewage solids into small pieces so they can be pumped away through small diameter pipes. The pumps are available with or without control box and level switch. Pumps without control box must be connected to a separate pump controller with motor starter. The compact design makes these pumps suitable for both temporary and permanent installation. Furthermore, the pumps are suitable for free-standing installation as well as installation by means of an auto coupling guide rail system. The APG pumps are designed for pumping: ? Sewage ? Wastewater ? Wastewater with some fibrous material ? Integrated cutting system ? Dry or submerged installation ? Installation on auto coupling ? Sensors in windings
