Drainage, Sewage & Wastewater Pumps

Description Specification Downloads Description Cast iron submersible pumps with the vortex impeller for sewage, suitable for foul waste water with solid contents with the 30 mm as maximum diameter. Technopolymer upper cover with the handle. Nylon vortex impeller with the fiber glass abrasionproof resistance. Motor body, hydraulic section in cast iron EN GJL 200. Mechanical seal in carbon allumina. Dry type asynchronous sealed motor. Rotor mounted on ball bearings to ensure silent running and long life. In the single-phase version capacitor under the cover. Thermal and overcurrent protection responsability of the user Features Motor protection rating: IP 68 Insulation class: F Continuous duty with completely immersed pump. The single-phase version can be equipped with float switch for automatic starting and stopping of the pump.Supplied as standard with 10 mt H07RN-F power cable. Operating range: from 0 to 65 m3/h with head up to 40 mt. Liquid quality requirements: Non-aggressive sewage, drain water Liquid temperature range: From 0° to + 40°.

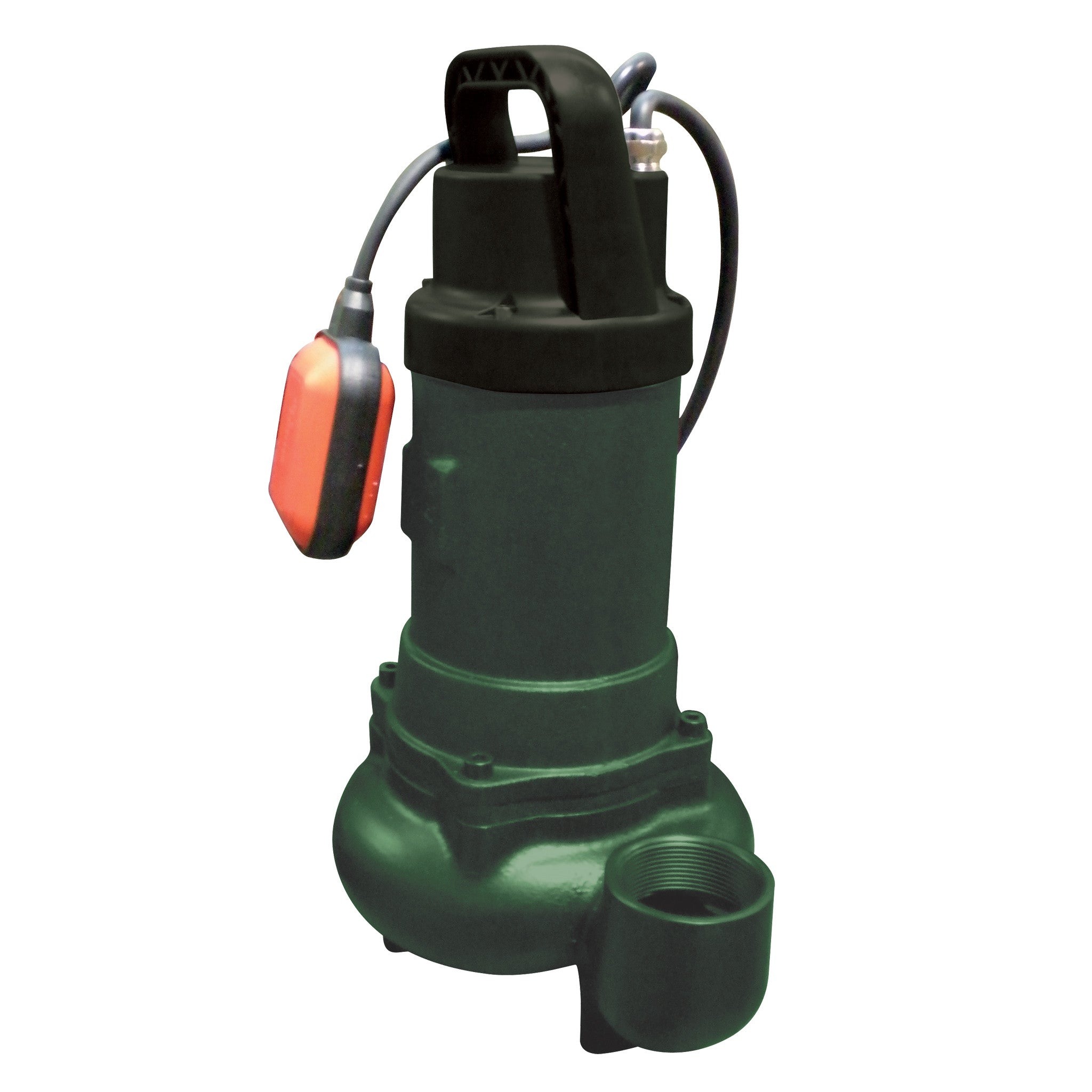

Description Specification Downloads Description Submersible centrifugal pump with liquid vortex cast steel impeller.Suitable for pumping sewer water and waste water in general containing solids up to a maximum size of 50 mm. Handle with insulating rubber cover. AISI 316 stainless steel drive shaft. Double mechanical seal with intermediate oil chamber (atoxic oil), in carbon/alumina on the motor side and silicon carbide/silicon carbide on the pump side. VS version: Stainless steel pump casing, seal cover, motor casing VX version: Technopolymer pump casing with threaded metal insert inserted into the delivery port, stainless steel seal cover, motor casing. Dry, asynchronous, sealed and cooled by the pumped liquid. Rotor mounted on greased for-life ball bearings, oversized and selected to guarantee greater noise reduction and duration. Thermo-amperometric protection as standard for single-phase version, and the user’s responsibility for the three-phase version. Constantly active capacitor on the single-phase version. Construction in accordance with the IEC 2-3 IEC 61-69 (EN 60335-2-41) standards. Features Motor protection class:

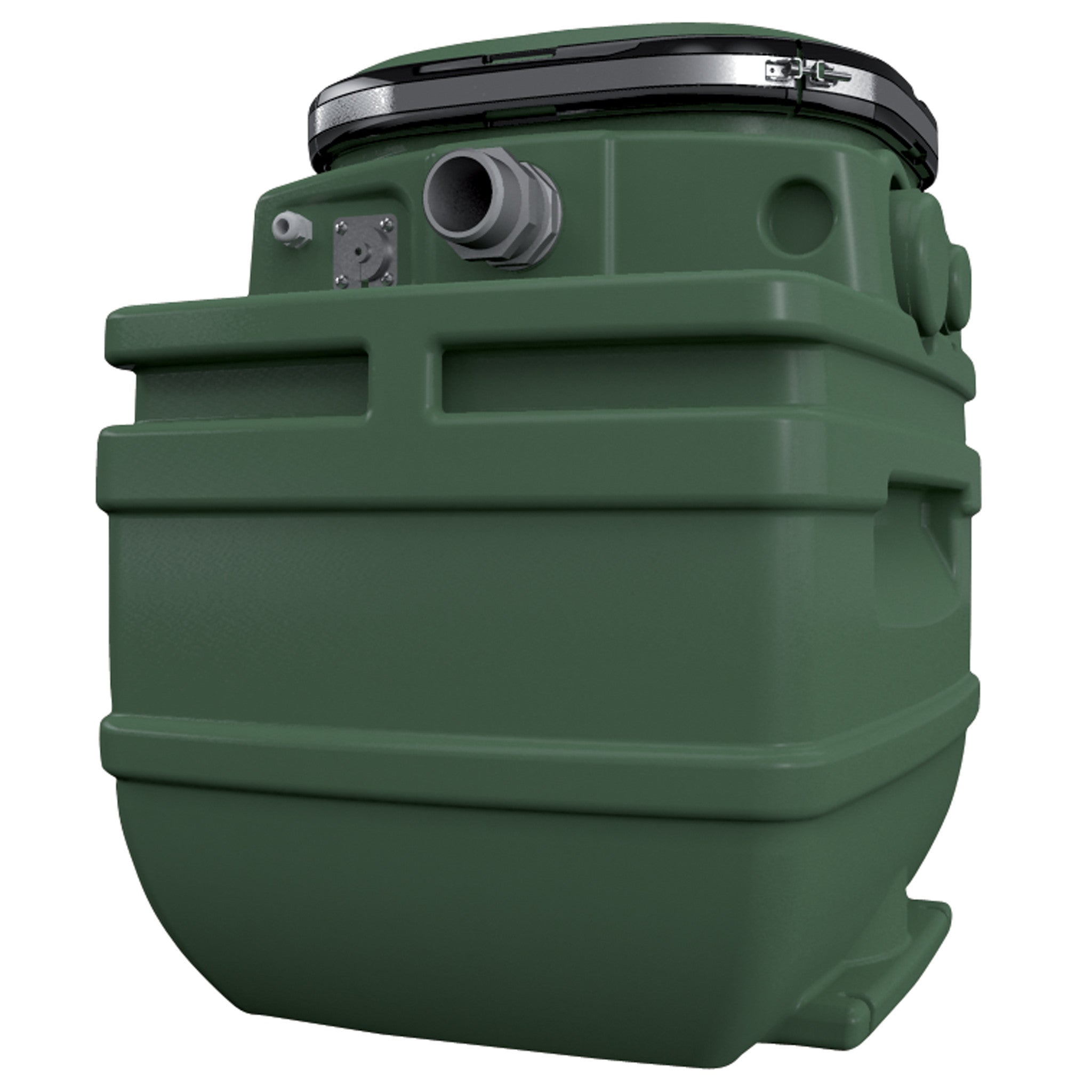

Description Specification Downloads Description Automatic collection and lifting stations, used for collecting and pumping civil and industrial waste water in sewers. Comprises a high density 200 litre polythene tank with removable cover complete with a watertight and gastight seal. Features Fekabox series is suitable only for the use of one single phase automatic pump from the following: FEKA 600 MA, FEKA VS/VX 550-750-1000-1200 MA, GRINDER GL 1000 MA, to be ordered separately. Complete with: 2“ PVC unions special cable holder and cable gland, DN50 and DN110 suction manifolds and 2” delivery manifolds. Complete with connector for DN50 vent tube. An alarm float can be used on request. Operating range: from 1 to 32 m3/h with a head of up to 15 m Liquid temperature range: +50°C Pumped liquid: ground water, rain water, clear waste water, black waste water and water from rivers and lakes.

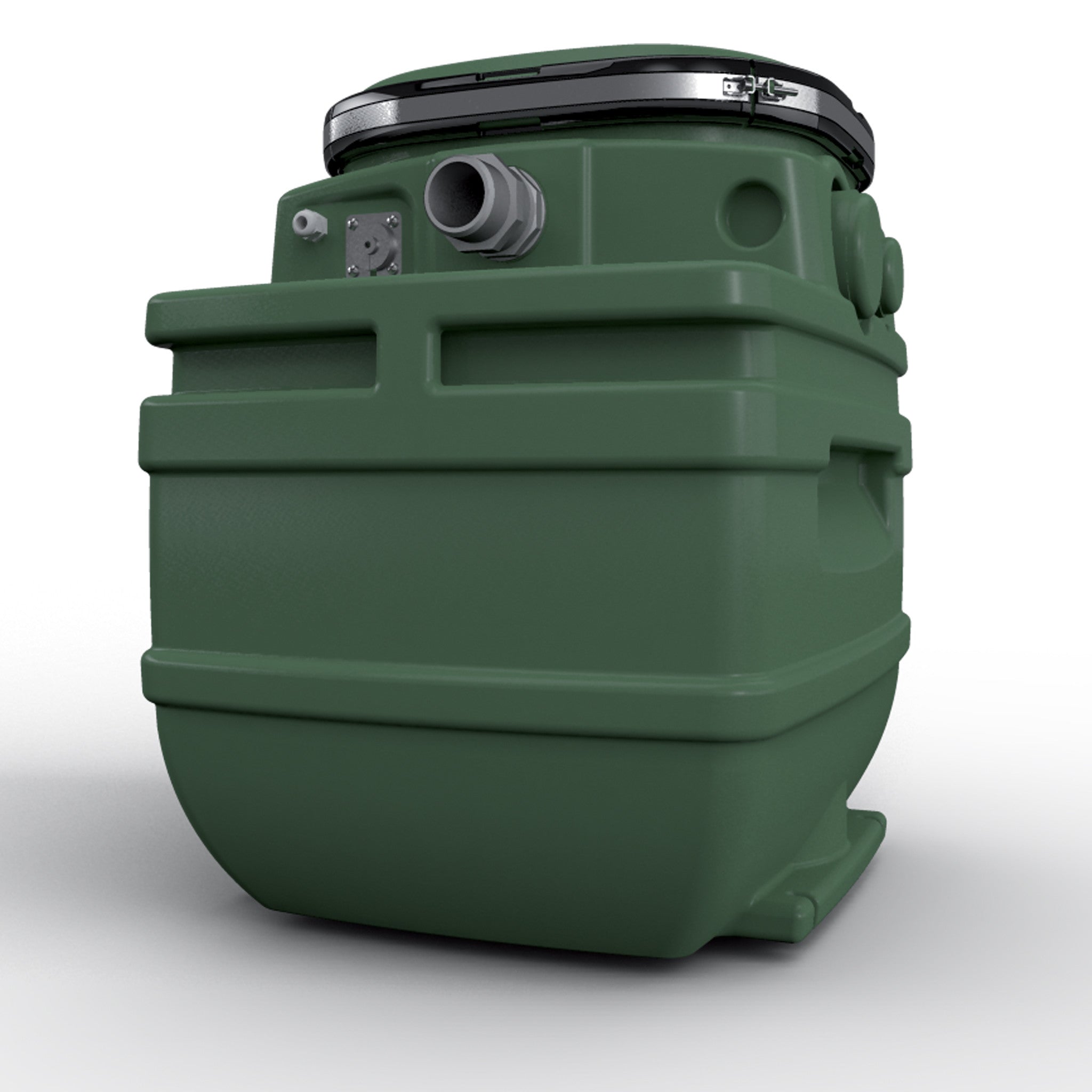

Description Specification Downloads Description Automatic collection and lifting stations, used for collecting and pumping civil and industrial waste water in sewers. Comprises a high density 200 litre polythene tank with removable cover complete with a watertight and gastight seal. Fekafos series is suitable only for the use of one not automatic single/triphase pump from the following: FEKA 600 M-NA - FEKA VS-VX 550 M-NA /T-NA - FEKA VS-VX 750 M-NA /T-NA - FEKA VS-VX 1000 M-NA /T-NA - FEKA VS-VX 1200 M-NA /T-NA, GRINDER 1000-1200-1600T, GRINDER 1400 M -1800 T, to be ordered separately. Complete with: 2 bulb floats mounted on a stainless steel support, cable holder for connecting the float and pump cables to the electrical panel (to order separately according to the performance range table). Features Complete with: 2” PVC unions, DN50 and DN110 suction manifolds and 2” delivery manifolds. Complete with connector for DN50 vent tube. An alarm float can be used on request. Operating range: from

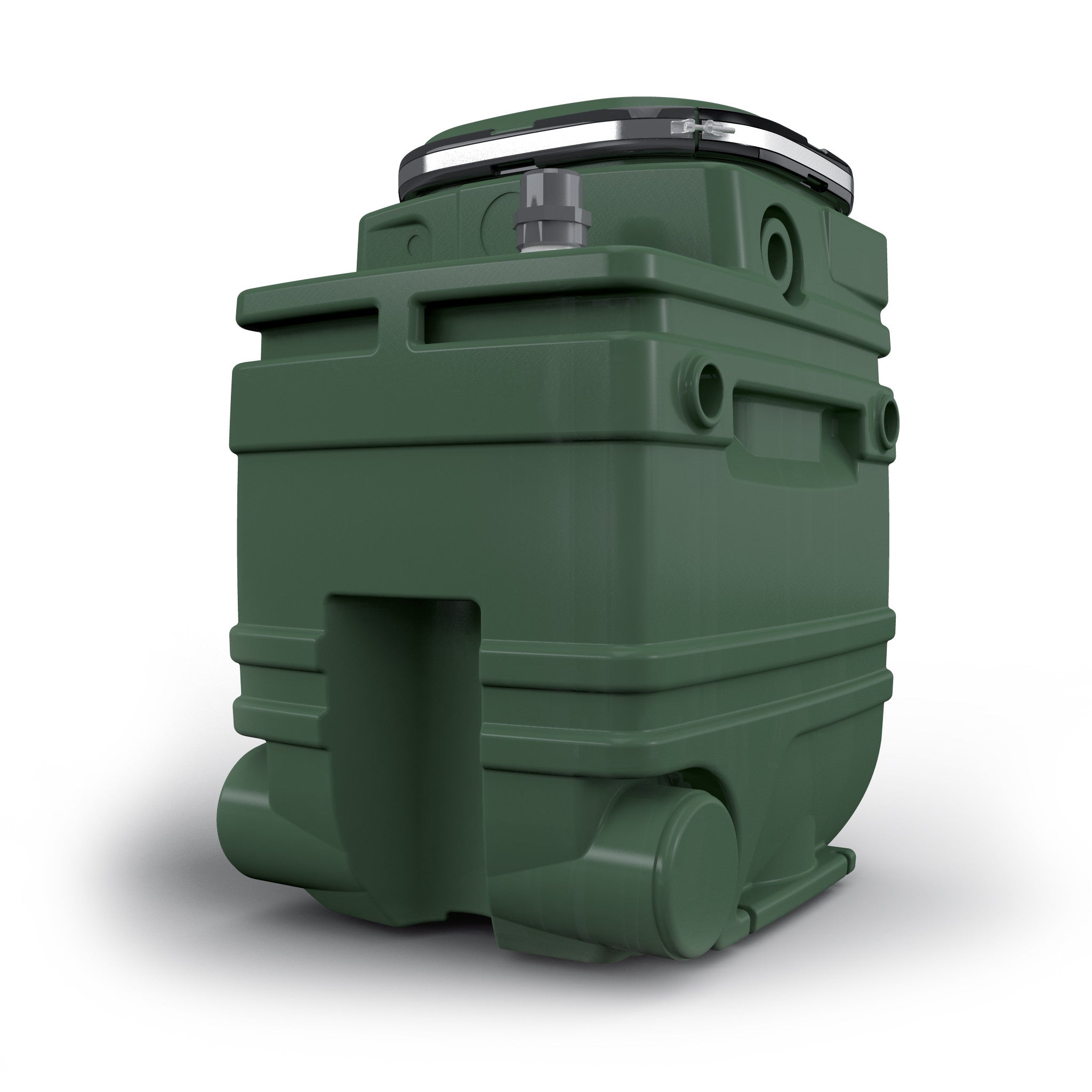

Description Specification Downloads Description Automatic collection and lifting stations, used for collecting and pumping civil and industrial waste water in sewers. Comprises a high density 280 litre polythene tank with removable cover complete with a watertight and gastight seal. Fekafos series is suitable only for the use of one not automatic single/triphase pump from the following: DN 50 (FEKA 600 M-NA/T, FEKA VS/VX 550-750-1000- 1200 M-NA/T GRINDER 1000-1200-1600 T, GRINDER 1400 M-1800 T, FEKA 1400 M-1800 T, FEKA 2015 - 2030.2TNA) DN 65 (FEKA 2500.4T, FEKA 2515-FEKA 2500-FEKA 2700.2T), to be ordered separately. Complete with: 2 bulb floats mounted on a stainless steel support, cable holder for connecting the float and pump cables to the electrical panel (to order separately according performance range table), DN50 and DN110 suction manifolds and 2” delivery manifolds, connector for DN50 vent tube, lifting device (DSD2) for making pump maintenance easier. An alarm float can be used on request. Features Operating range: from 1 to

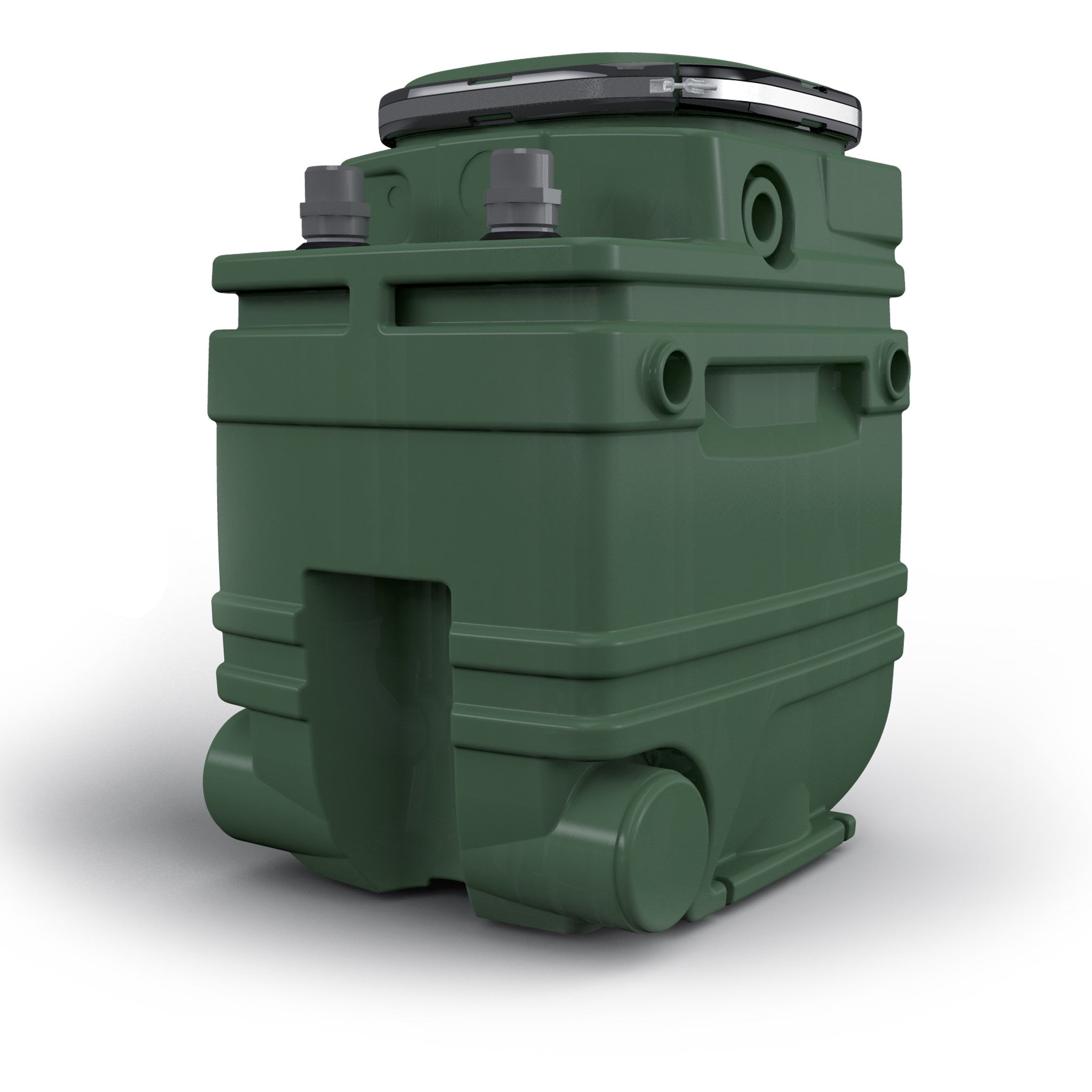

Description Specification Downloads Description Automatic collection and lifting stations, used for collecting and pumping civil and industrial waste water in sewers. Comprises a high density 280 litre polythene tank with removable cover complete with a watertight and gastight seal. Fekafos series is suitable only for the use of one or two not automatic single/triphase pumps from the following: DN 50 (FEKA VS-VX 550 M-NA /T-NA - FEKA VS-VX 750 M-NA /T-NA - FEKA VS-VX 1000 M-NA /T-NA - FEKA VS-VX 1200 M-NA /T-NA) DN 65 (FEKA 2500.4T, FEKA 2515-FEKA 2500-FEKA 2700.2T) to be ordered separately. Features Complete with: 3 bulb floats mounted on a stainless steel support, cable holder for connecting the float and pump cables to the electrical panel (to order separately according to performance range table), DN50 and DN110 suction manifolds and 2” delivery manifolds,connector for DN50 vent tube, lifting devices (DSD2) for making pump maintenance easier. An alarm float can be used on request. Operating range: from
