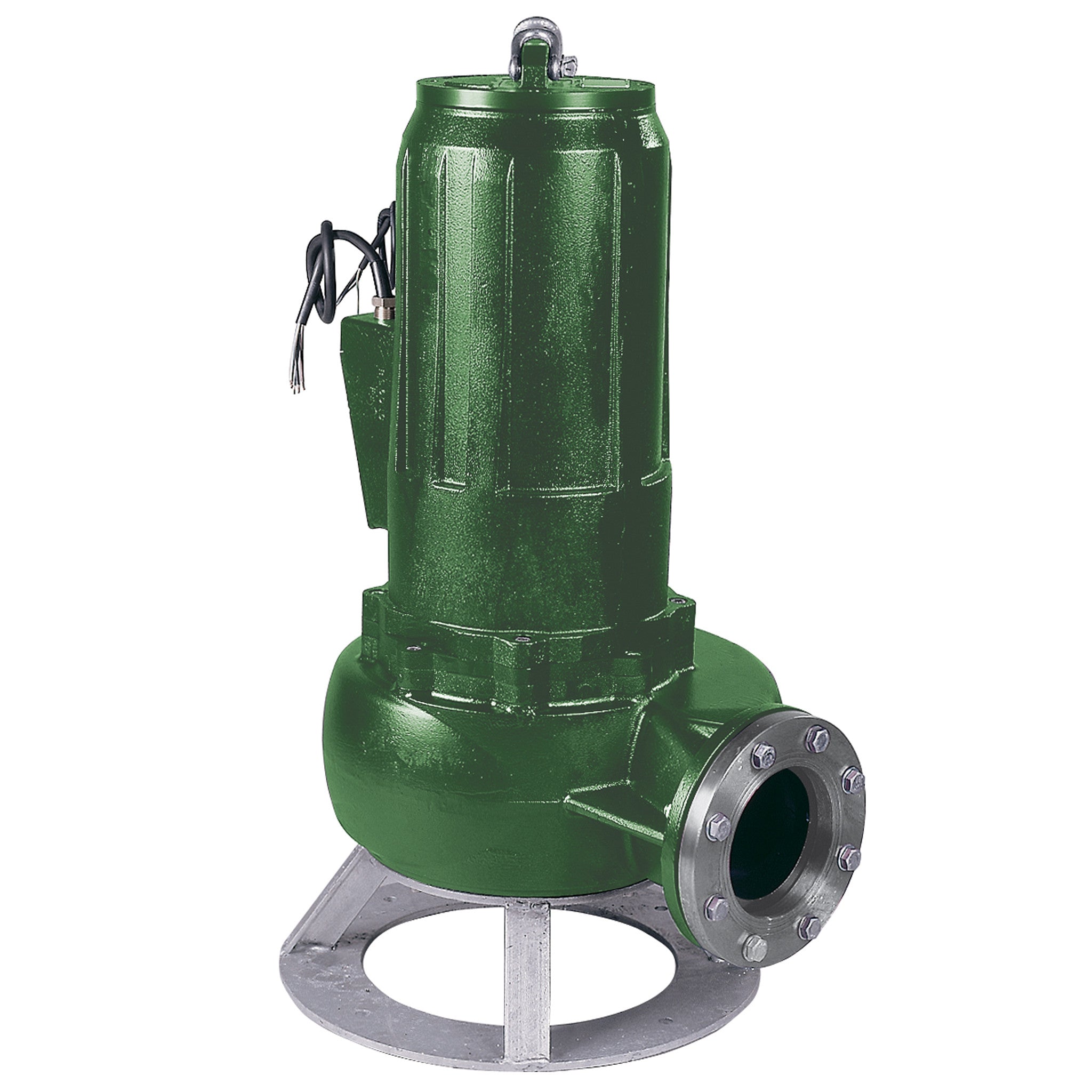

Description Specification Downloads Description Cast iron submersible pumps with the vortex impeller for sewage, suitable for foul waste water with solid contents with the 83-98 mm as maximum diameter. Technopolymer upper cover with the handle. Nylon vortex impeller with the fiber glass abrasion proof resistance. Motor body, hydraulic section and any impeller in cast iron EN GJL 200. Double mechanical seals in oil chamber: motor side carbon/steel, pump side in silicon carbide/silicon carbide. On request : oil chamber with water level detector kit.. Dry type asynchronous sealed motor. Rotor mounted on ball bearings to ensure silent running and long life. Thermal and over-current protection are responsibility of the user; on request available already installed in the motor windings. Features Motor protection rating: IP 68 Insulation class: F Continuous duty with completely immersed pump. The single-phase version can be equipped with float switch for automatic starting and stopping of the pump.Supplied as standard with 10 mt H07RN-F power cable. Operating range:

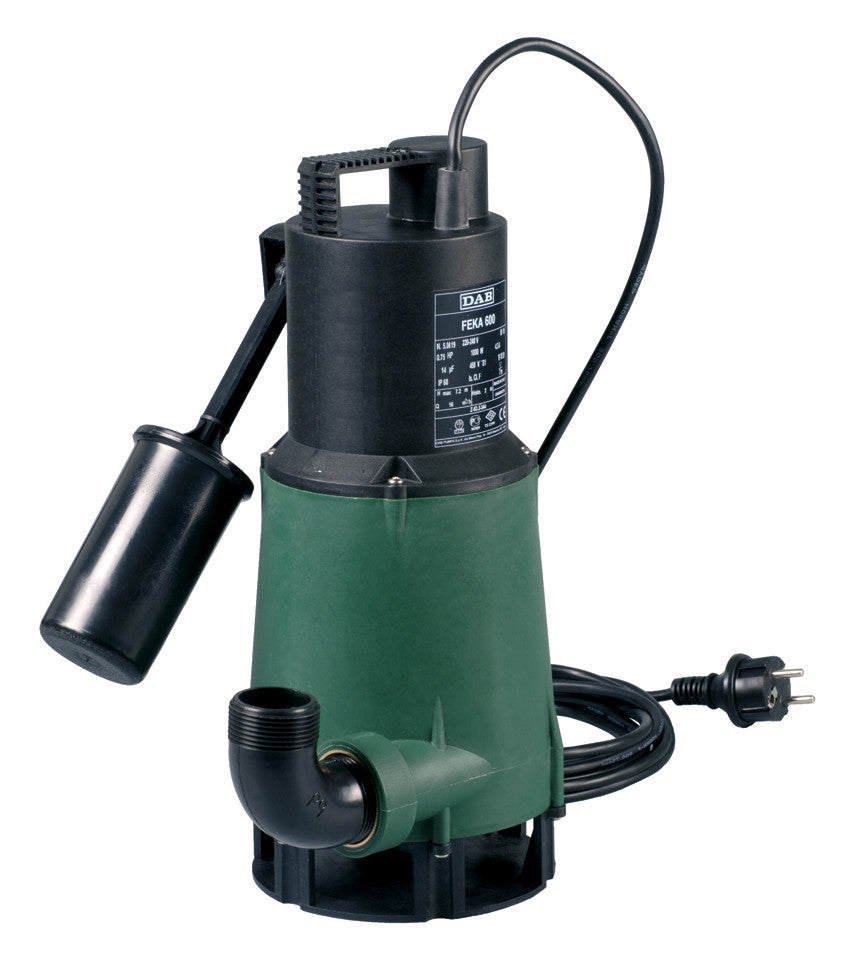

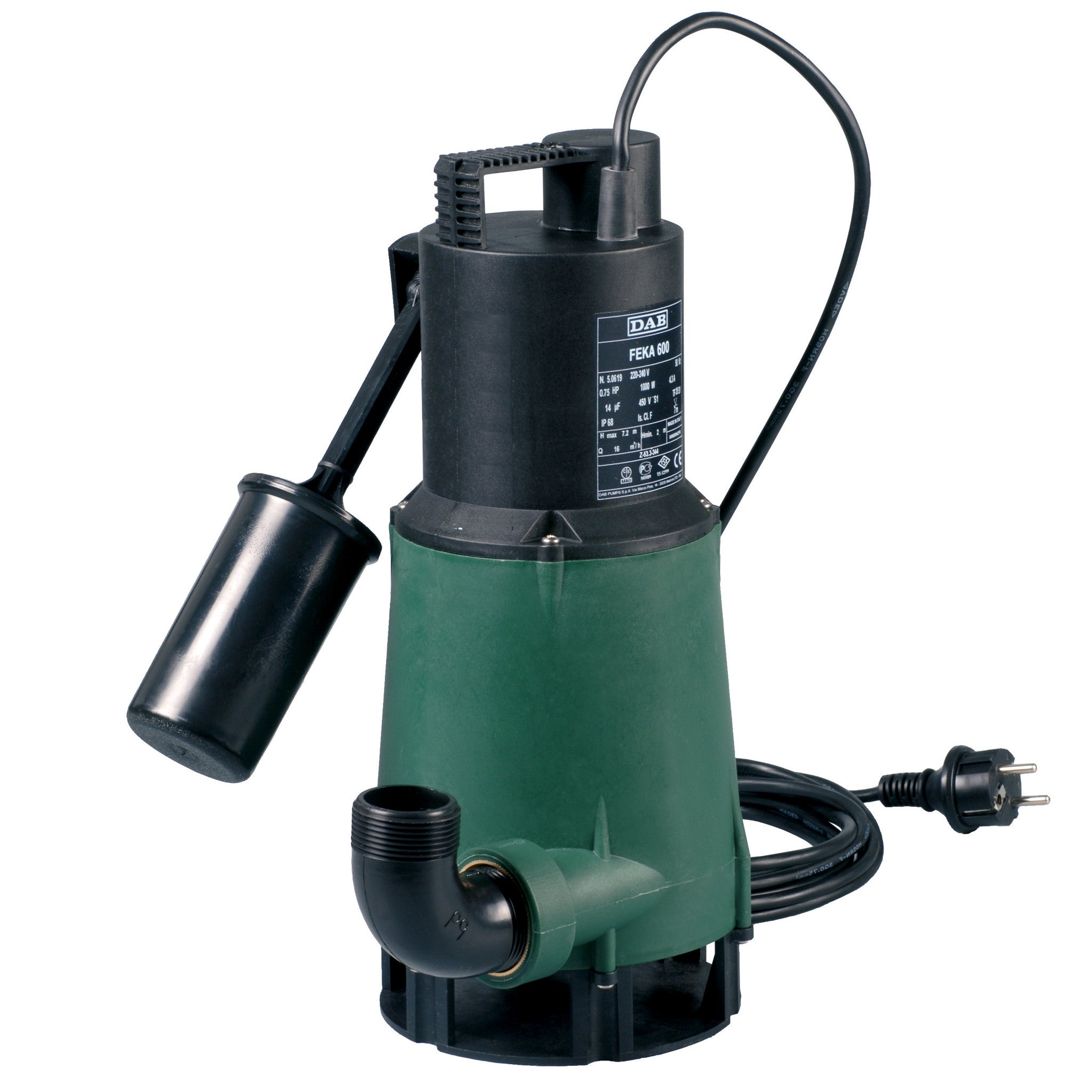

Description Specification Downloads Description Pump body, impeller, cap and suction grid in technopolymer. Motor, rotor shaft and screws in stainless steel. Triple O-ring seal interposed with an oil precombustion chamber. Continuous duty submersible asynchronous motor. Stator fitted in an airtight stainless steel casing. Rotor mounted on over-dimensioned, greased-for-life ball bearings. Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version. For the protection of the three-phase motor it is advisable to use a suitable overload protection complying with the regulations in force. Features Supplied with standard power cables for the single-phase version: 5 metres HO5RN-F cable for: FEKA 600 M-A. 10 metres HO7RN-F cable for: FEKA 600 M-NA. Standard cables supplied for the three-phase version: 5 metres of HO7RN-F cable. For the single phase the standard is a SCHUKO plug EEC VII. For special version available with special stainless steel motor shaft. Operating range: from 1 to 16 m3/h with head up to 10.2 metres.
Description Pump body, impeller, cap and suction grid in technopolymer.Motor, rotor shaft and screws in stainless steel.Triple O-ring seal interposed with an oil precombustionchamber. Continuous duty submersible asynchronousmotor. Stator fitted in an airtight stainless steel casing.Rotor mounted on overdimensioned, greased-for-life ballbearings. Built-in thermal and current overload protectionand a capacitor permanently on in the single-phaseversion. For the protection of the three-phase motor it isadvisable to use a suitable overload protection complyingwith the regulations in force. Supplied with standardpower cables for the single-phase version:5 metres H05RN-F for: NOVA 180 M-ANOVA 300 M-ANOVA 600 M-A10 metres H05RN-F for: NOVA 180 M-NANOVA 200 M-NA10 metres H07RN-F for: NOVA 600 M-NAStandard cables supplied for the three-phase version:5 metres of HO7RN-F cable. For the single phase thestandard is a SCHUKO plug EEC VII.For special version available with special stainlesssteel motor shaft. Specification Features Operating range: from 1 to 16 m3/h with head up to 10.2 metres. Liquid temperature range: from 0°C to +35° C for domestic

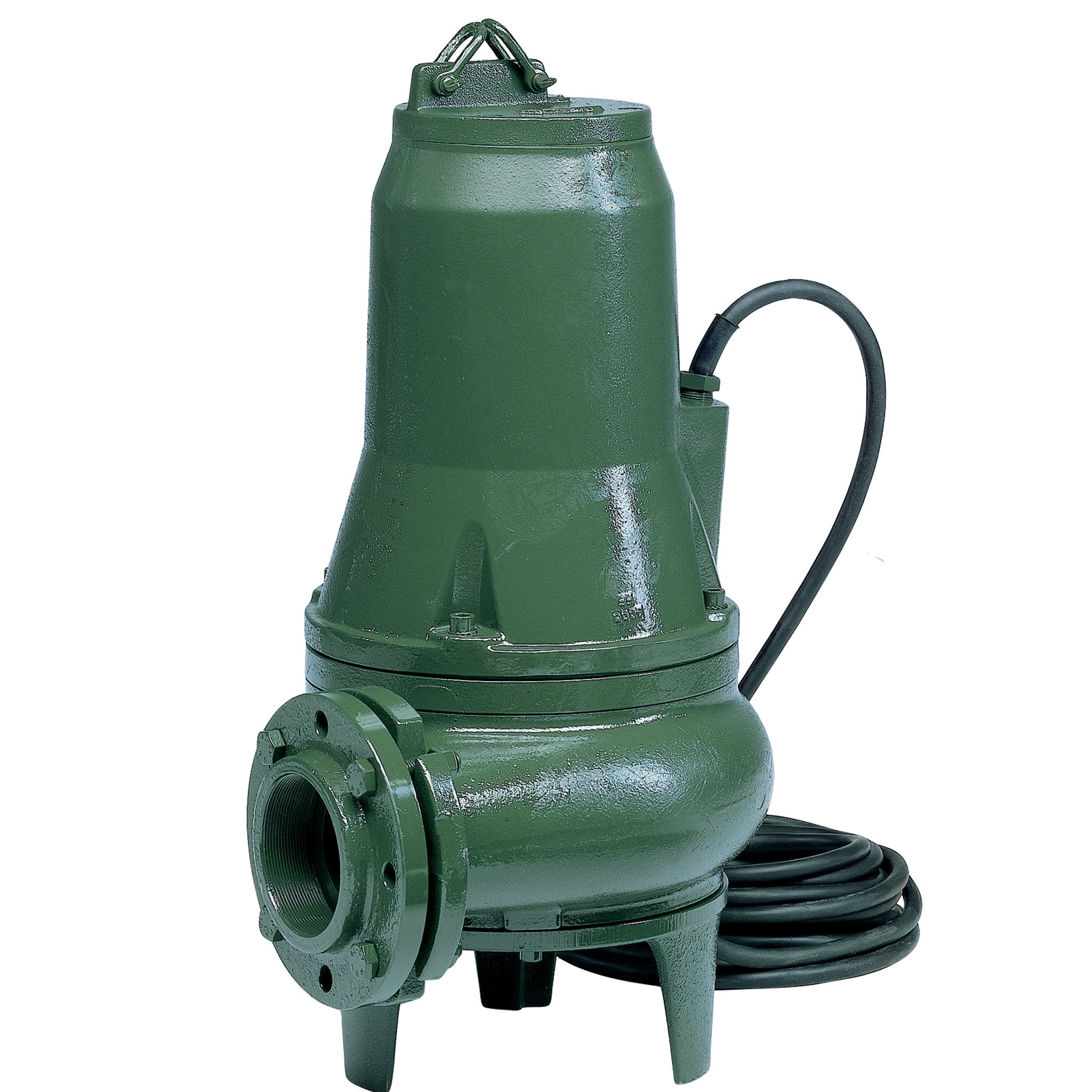

Description Specification Downloads Description Cast iron submersible pumps with the vortex impeller for sewage, suitable for foul waste water with solid contents with the 108 mm as maximum diameter. Technopolymer upper cover with the handle. Nylon vortex impeller with the fiber glass abrasionproof resistance. Motor body, hydraulic section and any impeller in cast iron EN GJL 200. Double mechanical seals in oil chamber: motor side carbon/steel, pump side in silicon carbide/silicon carbide. Oil chamber with water level detector kit. Dry type asynchronous sealed motor. Rotor mounted on ball bearings to ensure silent running and long life. In the single-phase version capacitor under the cover. Thermal and overcurrent protection are installed in the motor windings as standard. Features Motor protection rating: IP 68. Insulation class: F. Continuous duty with completely immersed pump. The single-phase version can be equipped with float switch for automatic starting and stopping of the pump. Supplied as standard with 10 metre H07RN-F power cable. Operating range: from

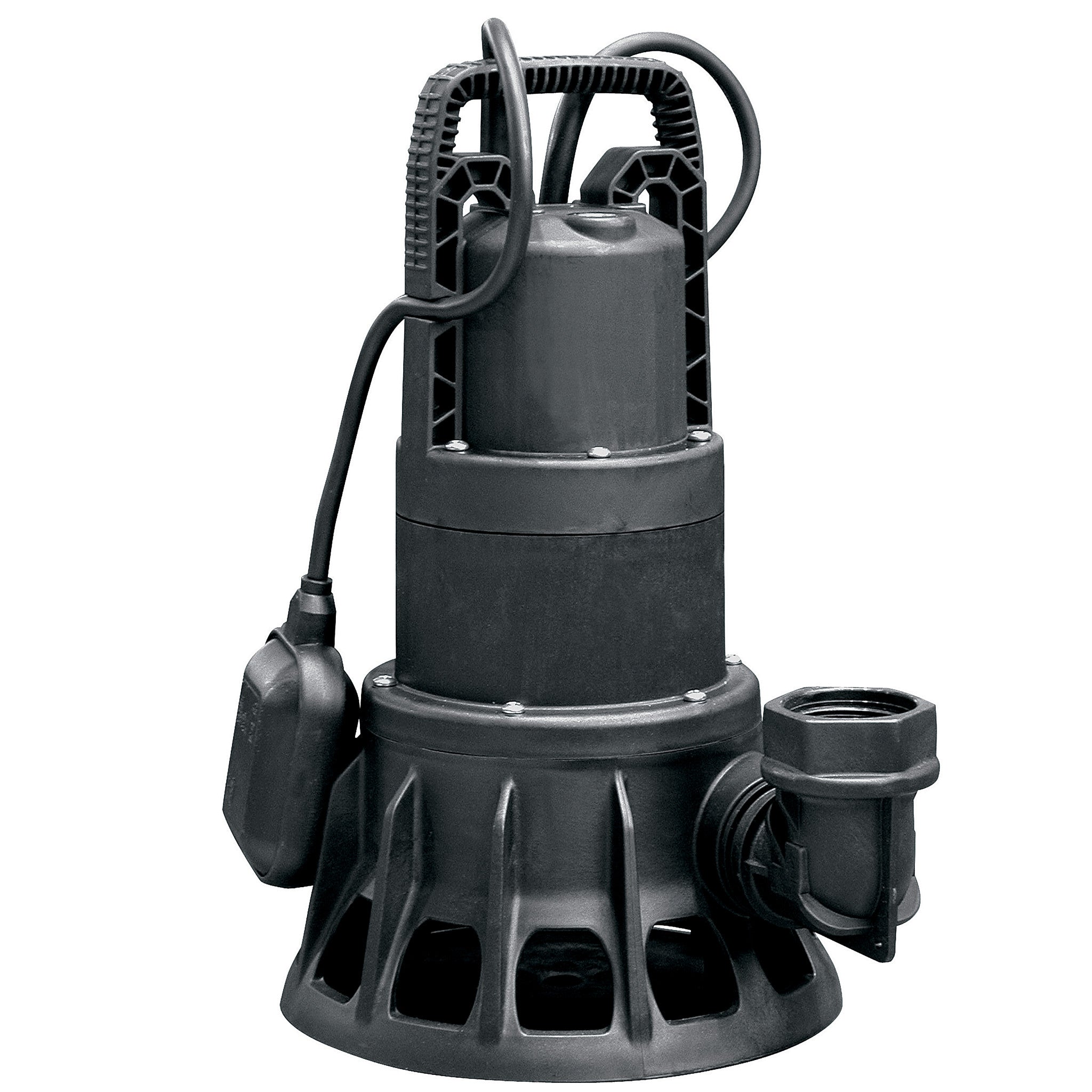

Description Specification Downloads Description Powerful submersible pumps for drainage and emptying duty. Designed for pumping foul water containing solid particles of no more than 38 mm in diameter. Anti-corrosion and anti-oxidation materials. Motor with thermal protection against overheating. Wear-resistant motor shaft and impeller. Excellent motor cooling to allow pump to run even when only partially submerged. Automatic version equipped with float switch for automatic starting and stopping of the pump, and manual version. Equipped with power cable with plug, and 3-level union, without check valve.

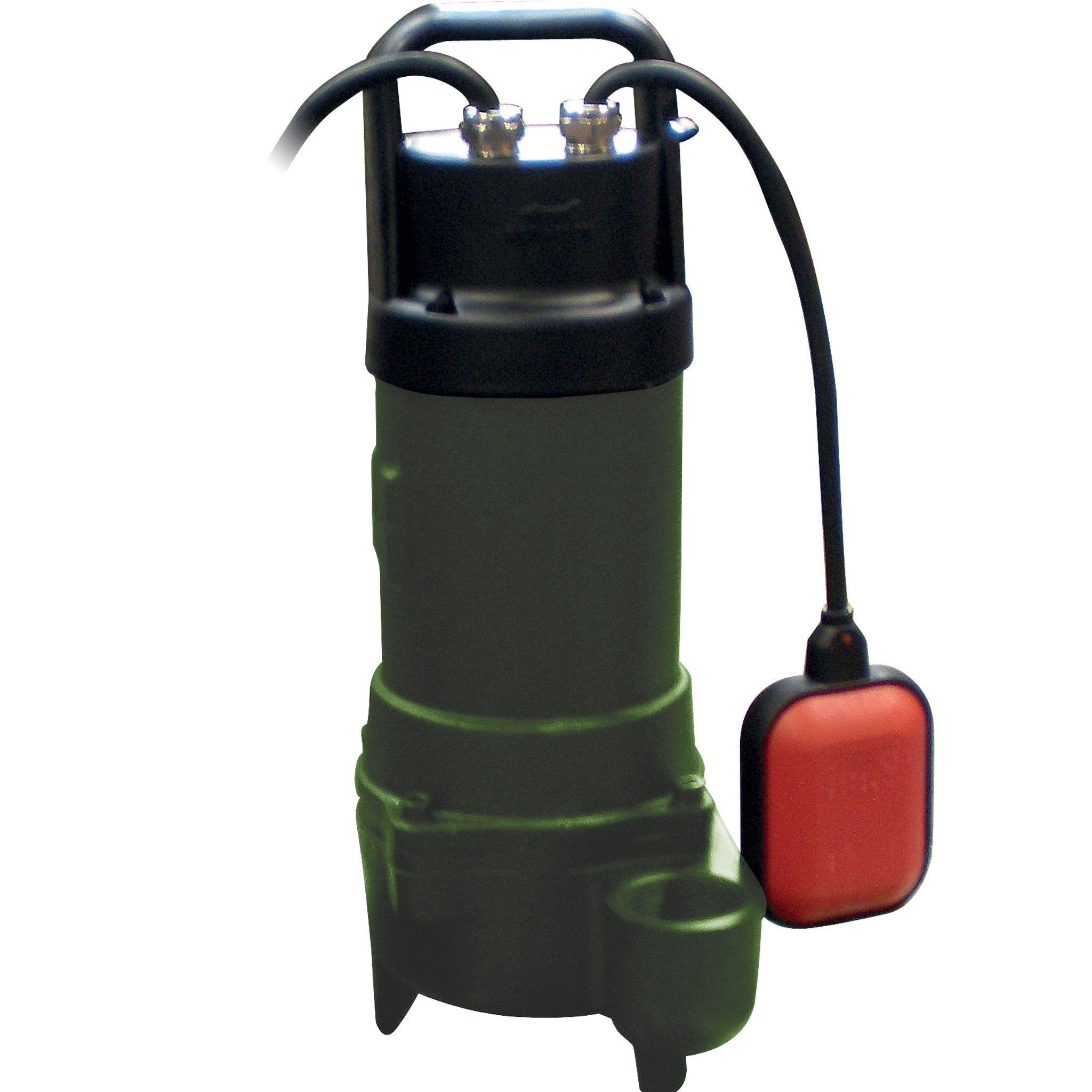

Description Specification Downloads Description Cast iron submersible pumps with the vortex impeller for sewage, suitable for foul waste water with solid contents with the 30 mm as maximum diameter. Technopolymer upper cover with the handle. Nylon vortex impeller with the fiber glass abrasionproof resistance. Motor body, hydraulic section in cast iron EN GJL 200. Mechanical seal in carbon allumina. Dry type asynchronous sealed motor. Rotor mounted on ball bearings to ensure silent running and long life. In the single-phase version capacitor under the cover. Thermal and overcurrent protection responsability of the user. Features Motor protection rating: IP 68. Insulation class: F. Continuous duty with completely immersed pump. The single-phase version can be equipped with float switch for automatic starting and stopping of the pump. Supplied as standard with 10 mt H07RN-F power cable. Operating range: from 0 to 65 m3/h with head up to 40 mt. Liquid quality requirements: Non-aggressive sewage, drain water. Liquid temperature range: from 0° to +
