Circulator & Hot Water Pumps

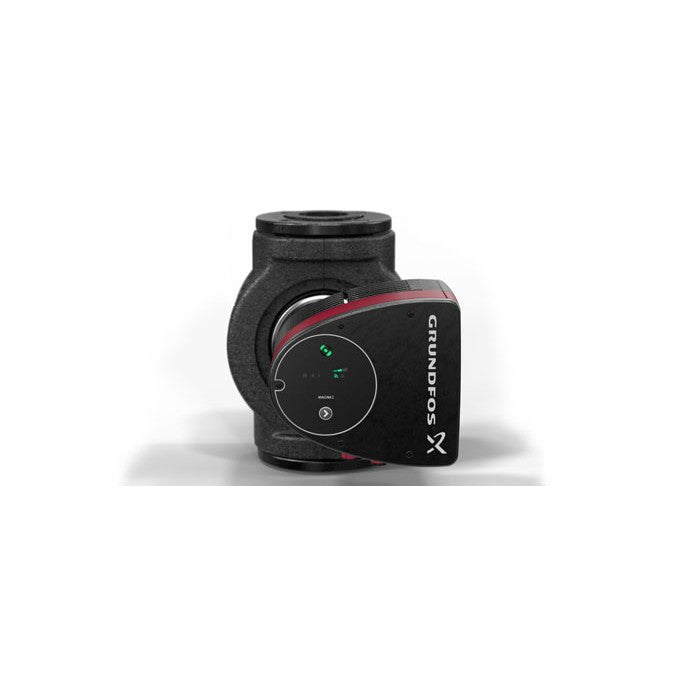

Description Specifications Downloads With the addition of the MAGNA1 range Grundfos can now deliver the required high energy efficiency, but with a reduced set of features. These pumps can offer the perfect solution in a refurbishment situation where you need to either replace a Grundfos UPS product or one of the smaller models from the original Magna family. These pumps are designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the settings of the pump duty point, thus reducing energy costs. The MAGNA1 range of circulators comes complete with electronically controlled motors that are based on permanent magnet (PM) and stator technology. They are designed for circulating liquids in a wide range of light commercial and commercial applications including: ? Heating systems ? Air conditioning and cooling systems ? Domestic water systems ? Ground-source heat pump systems ? Solar heating systems ? Proportional pressure control ? Constant pressure control ? Constant curve/constant speed

Description Specifications Downloads The MAGNA3 pumps are a range of small, medium and large circulator pumps fitted with electronically controlled motors based on permanent magnet (PM) and compact stator technology. With the MAGNA3, you can stop worrying about which pump setting to choose. Simply install the pump and leave it on the factory AUTOADAPT setting. The MAGNA3 will then analyse the heating system demands and find the optimal setting. It will then continuously adjust its operation to changes within the system demand. The result is optimal comfort and minimum energy consumption. MAGNA3 pumps are extremely flexible and reliable, and have low noise levels, long life and minimum maintenance requirements. They are fitted with GENIair wireless communication as standard and can also be expanded to offer extended control options with Communication Interface Modules (CIM). Applications The Grundfos MAGNA3 circulator pumps are designed for circulating liquids in the following: ? Heating systems ? Air-conditioning and cooling systems ? Domestic hot-water systems ?

Description Applications and Industries Downloads General Description Grundfos TP(D) and TPE(D) vertical in-line pumps are used in a variety of applications. The pumps are all single-stage, in-Line centrifugal pumps with standard motor and mechanical shaft seals. The pumps are of the close-coupled type, i.e. pumps and motor are separate units. Two different models of vertical in-line pumps are available. Please note that there are a number of specific product variants available for each model. Detailed information on these variants can be found in Grundfos WebCAPS. TP(D) Pump This pump model is characterised by high reliability and efficiency. Quiet, highly efficient IE3 motors are standard components. All TP(D) pumps are electro-coated to ensure a high corrosion resistance. TPE(D) Pump TPE(D) motors have a built-in frequency converter, allowing different control methods to be employed. TPE(D) pumps offer energy saving benefits and increased comfort. Features and Benefits Optimised hydraulics for high efficiency Reduced power consumption High-efficiency motors IE3 motors Single and twin options

Description Applications and Industries Downloads General Description The UPS2 is the ideal replacement for UPS 15-50 and 15-60s in domestic heating systems. The UPS2 comes complete with modern motor technology and electronic control which enables it to exceed new EuP/ErP standards. The UPS2 comes as a complete pump or as a pump head only. Features and benefits • Three Pumps in One - The UPS2 can be set to meet the requirements of a UPS15 model designed for either 4m, 5m or 6m performance. • Control Box - The control box of the UPS2 can be mounted on the left, right or on the top. • Cable Gland - The cable gland of the UPS2 is the same design as that used on both the UPS15-50 and UPS15-60 circulators. This minimises time taken on changeover. See the easiest way to connect the new terminals by clicking here. • Pump Head - Where the existing pump base is in good condition
