Borehole & Well Pumps

Description Specification Downloads Description The PULSAR DRY pumps are used in lifting and pressurisation systems for water from primary collection tanks or wells and are suitable for providing pressurized water in domestic systems, small-scale farming and sprinkler systems for gardens and vegetable gardens. The pump is extremely silent and this feature makes it suitable for use with pressurisation systems in unventilated rooms or in areas prone to flooding. Single-piece multi-stage bore-hole pump or of surface with hydraulic assembly positioned under the motor which is cooled by the pumped liquid. Impellers, diffusers, filter and oil sump in abrasionproof thermoplastic. Pump liner, stator sleeve, upper head with sleeve and sealing ring in AISI 304 steel. Upper and lower bearing supports in dezincification-proof pressed brass. Rotor shaft extension in AISI 304. Elastomers in NBR. Stainless steel hardware. Double mechanical seal separated by an oil chamber, in ceramic/carbon on the motor side and carburundum/carburundum on the pump side. The sealing system ensures the motor

Description Specification Downloads Description The DAB S4 are a 4 inch multi-impeller borehole pumps for clean water, designed for water boosting, gardening and irrigation, lifting water from boreholes in domestic and residential, civil and commercial applications and irrigation systems also for agriculture. The S4 pumps must be installed in wells with a diameter of at least 4", or in tanks or cisterns and it increases the pressure of water that can then be used for example to water medium or large gardens or (in the case of models with a greater flow and head) in irrigation systems in agriculture. These are sand-resistant pumps with a high performance. The entire range complies with the standard MEI ≥ 0.4. All the model have the ACS certificate. WRAS and DM174 certificate are pending approval. Features Pumped liquid: clean, free from solid or abrasive substances, chemically neutral and close to the characteristics of water. Liquid temp. range: from 0?C to +40?C. Motor protection level:

Description Specification Downloads The Grundfos SQ pump 3" submersible pump range offers a wide performance range, you're sure to find a model that will suit your individual requirements. The SQ is a compact 3" multistage centrifugal pump that allows you to install it in a borehole as small as itself. With the built-in electronics, the SQ family is very easy to install and operate. And it guarantees a reliable water supply at all times. Equipped with the permanent magnet motor, the flexible and compact pump range offers excellent efficiencies and delivers up to 200m pump head. Connecting your SQ pump to the Grundfos CU301 control box, furthermore offers the possibility of creating a constant pressure water supply. Applications SQ/SQE pumps are suitable for both continuous and intermittent operation for a variety of applications: Ground water supply - private housing, small waterworks, small irrigation system Liquid transfer in tanks Pressure boosting Environmental applications - remedial pumping or sampling   Features and

Description Specification Downloads The Grundfos SQ pump 3" submersible pump range offers a wide performance range, you're sure to find a model that will suit your individual requirements. The SQ is a compact 3" multistage centrifugal pump that allows you to install it in a borehole as small as itself. With the built-in electronics, the SQ family is very easy to install and operate. And it guarantees a reliable water supply at all times. Equipped with the permanent magnet motor, the flexible and compact pump range offers excellent efficiencies and delivers up to 200m pump head. Connecting your SQ pump to the Grundfos CU301 control box, furthermore offers the possibility of creating a constant pressure water supply. Applications SQ/SQE pumps are suitable for both continuous and intermittent operation for a variety of applications: Ground water supply - private housing, small waterworks, small irrigation system Liquid transfer in tanks Pressure boosting Environmental applications - remedial pumping or sampling   Features and

Description Specification Downloads The Grundfos SQ pump 3" submersible pump range offers a wide performance range, you're sure to find a model that will suit your individual requirements. The SQ is a compact 3" multistage centrifugal pump that allows you to install it in a borehole as small as itself. With the built-in electronics, the SQ family is very easy to install and operate. And it guarantees a reliable water supply at all times. Equipped with the permanent magnet motor, the flexible and compact pump range offers excellent efficiencies and delivers up to 200m pump head. Connecting your SQ pump to the Grundfos CU301 control box, furthermore offers the possibility of creating a constant pressure water supply. Applications SQ/SQE pumps are suitable for both continuous and intermittent operation for a variety of applications: Ground water supply - private housing, small waterworks, small irrigation system Liquid transfer in tanks Pressure boosting Environmental applications - remedial pumping or sampling   Features and

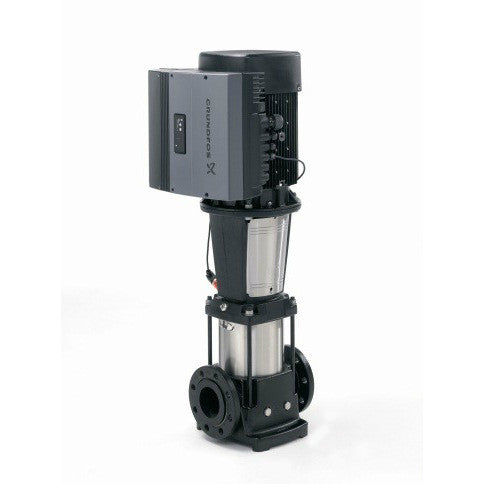

Description Specifications Downloads The basic CR pump range, which applies to almost any industrial solution, is in itself the broadest range available. With our modular approach, we have made it even broader. The basic CR pump range is available as standard in three different materials including two grades of stainless steel, and all-titanium versions in eleven flow sizes, capable of producing up to 40 bars of pressure, and with a variety of shaft seals, rubbers, supply voltages and frequencies. These pump parts, typically vulnerable to difficult liquids or particularly demanding operating conditions, have been optimised to the task and designed for specific requirements. Impressive as the CR range is, Grundfos offers much more. A complete range of pump solutions means that all industrial and domestic water applications can benefit from the Grundfos touch. Applications include: ? Process water systems ? Washing in cleaning systems ? Sea water systems ? Pumping of acids and alkalis ? Ultra filtration systems ? Reverse
